CE Car Spray Paint Booth Baking Room Paint Cabinet

Product Description

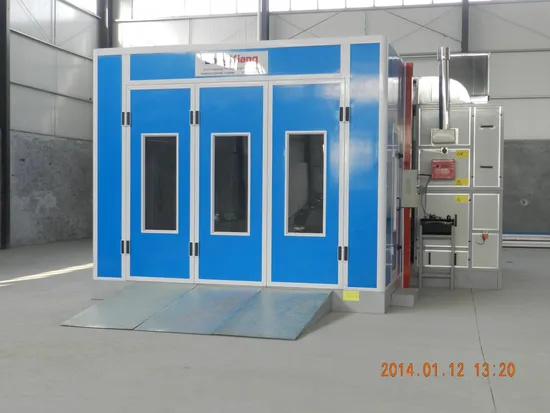

LX6 Down Draft Spray Booth for Large and Heavy Vehicles with Exhaust Filtering Systems



1.Customized Room body Color & Size.
2.Original Italian RIELLO Burner, Hot wind recycling system with SUS304 heat exchanger.
3. "BELIMO" automatic electric & pneumatic damper.
4. Unique big area air filtering system & filtering rate reaches 98%.
5. Big air capacity & low noise centrifugal blower fan adopts Siemens Technology.
6. LED lighting system with high illumination and long using life.
7. Insulation material wall panels using life up to 20 years.


Product Description

Product Parameters

Parameters
Outside size	7025*5350*3400mm(L*W*H)
Inside size	6900*3900*2650mm(L*W*H)
Entrance door	3 folds,3000*2600 mm(W*H), bending steel door
Emergency door	650*2000mm(W*H),equipped with handle lock

Main System
Cabin system	Wall panel	-Sandwich style EPS 75mm,0.5mm thick steel, anti-flame and heat-insulation. -High quality galvanized steel roof panel.
	Basement	-Galvanized steel assemble, 280mm high, quadrate steel support, 5 rows of grills with 30*5mm, with height adjustable bolts -3 ramps,external setting,970*2000mm(W*L)/pc
Ventilation system	Inlet fan	2*4kw double-intake centrifugal fans, air capacity:12500m³/h for each set
	Outlet fan	1*7.5kw double-intake centrifugal fan, air capacity:20000m³/h for each set
	Cabinet setting type	-Intake air from side upper ,adopt powder quadrate steel frame , strong and beautiful . -Cabinet for the fan*1unit ,air duct*1unit, -Elbow:90°*1 unit
Heating system	Burner	Italy RIELLO RG5S oil burner, heating capacity: 260000Kcal/h, with BELIMO 20N electric damper
	Heat Exchanger	1.5mm thickness SUS304 stainless steel
	Max.temperature	80ºC,heating time:4-5min(20-60ºC), fuel consumption is 4-5kg/vehicle
	Cabinet	Rock-wool insulation*1 unit,heat insulation and preservation,inflaming retarding
Lighting system	Ceiling lights	8*4pcs*16w LED lighting
	Side lights	8*2pcs*16w LED lighting
Filtering system	Primary filter	Grade G2 plate type , filtering rate>83%
	Ceiling filter	EU5 grade high efficient filter,filtering rate>98%
	Floor filter	Multi-layer fiberglass filter,filtering rate>70%
	Active carbon	Small cabinet with activated carbon granule
Control system	Control panel	Micro-computer control system
	Function	Lighting, temperature time setting, painting, constant temperature painting, baking,emergency stop, failure indication, time accumulate, etc
Total power	16.5KW
Voltage/Frequency	380V,50HZ,3 phase

In order to promote dust free, appropriate temperature and wind speed for customers, LONGXIANG spray booth has following advantages:
Ventilation of the spray booth
LONGXIANG spray booth has several ventilation systems which provide better painting conditions. All the filter systems and air exhaust systems underneath create a efficiently vertical air flow; and this air flow distribute inside of the booth evenly; then this air flow make overspray removing away from the vehicle immediately and completely.

Air recirculation on baking model
100% of the air produced by the fan is transported into LONGXIANG spray booth during the baking model; and only 15%-20% is expelled outside which means the balance 85%-80% is recovered and filled up with fresh air by means of the changeover damper.
The inner temperature of the LONGXIANG spray booth raises rapidly; Then the heating system will power off at once when it reaches at baking temperature, this will save more energy.

Lighting
The lighting system is provided by four*16W light fixed in the ceiling panels and side walls. They are sealed with 5mm tempered safety glass. LONGXIANG spray booth lighting system is able to supply enough lighting with lower energy consume safely.

Filters
The filtering system is made up by high-efficiency filters. The filers hold higher dust retention capacity and lower resistance to the air passage. The long life designing reduces frequency of replacement, which is contributing to reductions in running costs.

Warranty
Our equipments except quick-wear-parts are guaranteed for 12 months from the date of receipt, and the filters and lamps are quick-wear-parts.
Why Choose LONGXIANG spray booth?
1. Verified 10 years original factory, covers more than 28,000 owned built square meters.
2. Quality first and service higher are the principle for LONGXIANG members. Supporting higher quality equipments is the only purpose for LONGXIANG .
3. We own product showroom in factory and apply 24h-visiting our factory at any time.
4. Professional engineer and technician team guarantee wonderful product structure, design and layout.
5. With excellent attitude and service, our experienced export team members provide suitable solution for your own standard or customized goods.
6. Powder coated parts are widely used with our products such as beams, frames, cabinets and basement etc; this will help to prolong service life.
7. High quality materials, appropriate facilities, strictly procedure controlling and skilled workers can help to make sure higher quality products.
9. Specially verified by CE, SGS, ISO and other certificates, which help LONGXIANG products to get a higher level.

Certifications



Customers/exhibiton shows

Packing & Shipping

Delivery Details: Usually we will ship you our standard specifications goods about 7-10 days after receiving your payment. It depends on the quantities you order.
Packing Details:Standard exportation packing with polyfoam / wooden box / carton.

---
