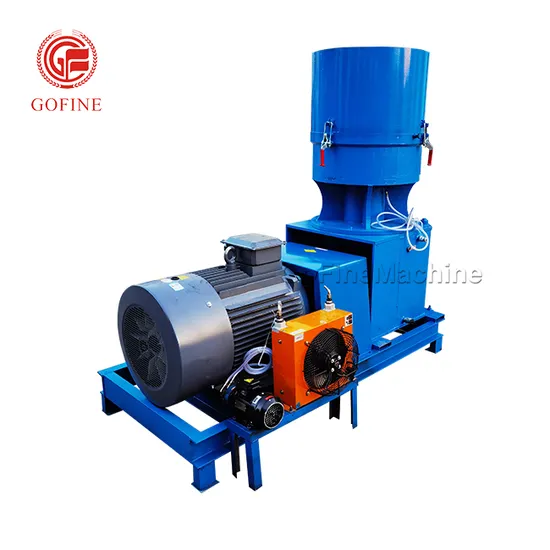

Flat Die Extrusion Granulator Columnar Granules Making Machine

Product Description

Flat Die Extrusion Granulator Columnar Granules Making Machine
Product Overview
The flat die granulator is mainly used for granulation processing in the organic fertilizer and aquaculture processing industries. The abrasive tool adopts a tapered inner hole, so that the linear speed of both ends is consistent with the inner and outer rings of the mold plate, and there is no dislocation friction between the wheel and the mold, which reduces resistance, reduces kinetic energy loss, and prolongs the service life of the mold. The equipment has high pelleting rate, high particle strength, low moisture content, and low drying energy consumption. It is widely used in animal husbandry, feed mills, various crop straws and domestic waste and other organic waste regranulation. It can be combined with a rounding machine to process cylindrical particles into spherical shapes.
Scope Of Application
Mainly suitable for coarse fiber granulation, such as: wood chips, rice husks, cotton stalks, cottonseed husks, weeds and other crop straws, domestic garbage, waste plastics and factory waste, granulation of materials with low bonding rate and difficult to shape, briquetting, and rod making, and can also be used for low-temperature granulation of biological bacterial fertilizers, organic fertilizers, and compound fertilizers.
Granular Finished Product

Product Parameters

Model	Yield (kg/h)	Granulation rate (%)	Particle temperature rise (ºC)	Power (kw)	Total Weight (kg)
120	60-100	>95	<30	3	80/100
150	90-120	>95	<30	4	95/110
200	200-300	>95	<30	7.5	200/230
230	300-400	>95	<30	11	290/320
260	400-600	>95	<30	15	320/360
300	600-800	>95	<30	22	410/450

Product Details
working principle

working principle

Working Principle
The screw center pressure regulating mechanism is adopted, and the mold gap varies with size, suitable for different materials, and ensures the pressing effect. Its pressure roller adopts a large body and a wide groove, which is pressure-resistant and wear-resistant. The pressure roller adopts multiple uniform distribution, which ensures stable operation. At the same time, the pressing area is increased, and the production efficiency is improved. The compression molding of this model is diversified, and round rods, squares, and granules can be made by simply changing the mold. It is suitable for compression molding of different materials and achieves the best benefits. The granulation chamber is equipped with an observation door, which is easy to check at any time for maintenance and repair.
Advantage
1. High ball forming rate, even and tidy without return material.
2. The pellet strength is high, and the water content of pellets is low, which reduces the drying energy consumption.
3. The pressure wheel is adopted, and the two ends are consistent with the inner and outer rings of the mold plate, so there is no dislocation friction between the wheel and the mold, which reduces the resistance and prolongs the service life of the mold.
Quality Inspection
Overseas Scene
Packaging & Shipping
About Us
Zhengzhou GOFINE Machine Equipment Co., Ltd. located in Zhengzhou West Development Zone, is a large-scale fertilizer equipment supplier integrating the scientific research, production, sales, import and export services since 1987. GOFINE takes "Quality First, Customers Supreme" as its tenet,"Treat customers with honesty, create business with integrity" has been deeply rooted in the hearts of every GOFINE person. GOFINE are willing to cooperated with all the new and cooperated customers to create a glorious future together!

---
