Product Details
Product Description
Product Description

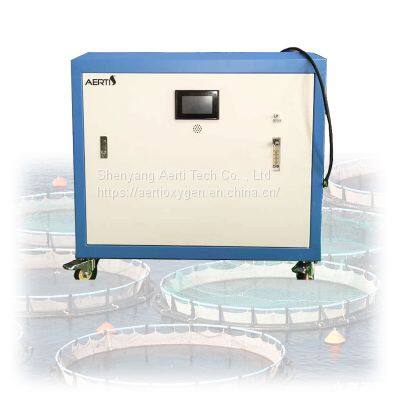

High Flow Oxygen Concentrator up to 120L, the machine uses PSA Gas Separation Technology and France Imported CECA molecular sieve. They are wildly used in medical use and Industry fields like: Water treatment, Ozone, Aquaculture, and also used in Hotel, GYM, SPA, High Altitude Area etc.
Model
| AHG-020
| AHG-040
| AHG-060
| AHG-080
|
Rated Flow
| 0-20L/MIN
| 0-40L/MIN
| 0-60L/MIN
| 0-80L/MIN
|
Oxygen Concentration
| 93±3%
|
Power Consumption
| 1100W
| 2200W
| 3300W
| 4400W
|
Working Voltage
| Customized
|
Oxygen Outlet Pressure
| 50-120kPa (0.5-1.2 bar)
|
Standard Functions
| Power failure alarm; Over heat alarm;
Low purity alarm; Cumulative running time display;
|
Optional functions
| Built-in freeze dryer
|
Weight
(Whole machine)
| 76KG
| 135KG
| 242KG
| 292KG
|
Dimension with case
| 570*600*865mm
| 940*640*900mm
| 940*600*1650mm
| 940*600*1650mm
|
Features：1. PSA technology 2. Easy operation to power ON/OFF 3. Customized high pressure available (only AHH-020 model) 4. Easy to move with 4 casters 5. Built-in freeze dryer available (optional) 6. Three intelligent Self Diagnosis System: Power Failure Alarm/Over-Heat Alarm/ Low Purity Alarm 7. Modular structured design, easy maintenance
Application Range
1）Medical use in hospital with 50-100 beds. Connected with ventilator and anaesthesia machine at ICU; Connected with ventilator and anaesthesia machine at operating room;
2）Oxygen source of oxygen health care equipment (such as brain fatigue, beauty treatment, exercise fatigue, elderly infirmity, etc.) a. It is suitable for high-end leisure and entertainment places such as urban office buildings, office spaces, beauty salons, sauna bath centers, foot bath rooms, and chess and card rooms. b. Applicable to hotels, oxygen bars, sports coach centers, home health care, etc. c. Oxygen sources such as bars and water bars. d. Oxygen source for beauty equipment.
3) Industrial oxygen a. Ozone equipment oxygen source. b. Oxygen source for fish, poultry, pet transport equipment, etc. c. Oxygen source for pet oxygen therapy.
>>
