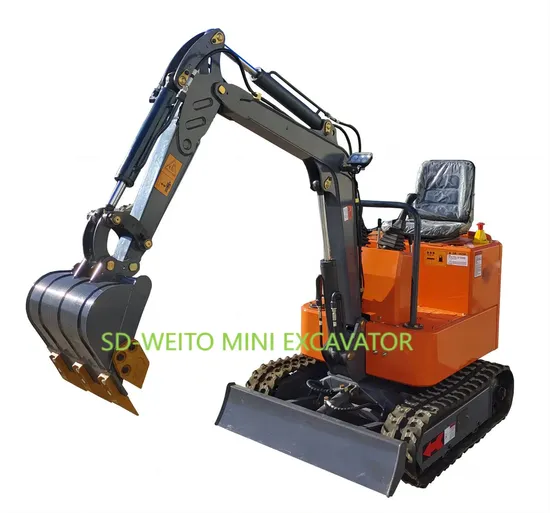

0.8 - 2 Ton Crawler Tracked Backhoe Bucket Mini Skid Loader Digger Excavator

Product Description

Factory supply construction machinery Straight Hair small Mini 0.8-1.5 Tons digger Rubber Crawler Excavator with accessories for Garden
main data
1.0 Ton mini small excavator data

Machine parameters		Machine configure
Model	WT-10	Engine Model	192F
Operating Weight	1000Kg	Main valve	TIANJI
Bucket Capacity	0.028m³	Main Pump	Shimadzu
Rated Power	8.6 kw	Rotation Motor	SANYO
Max.Hydraulic System Pressure	16mpa	Walking Motor	SANYO
Max. Grade ability	30°	Dimensions
Max. Ground Pressure	18.9N/m²	Overall Length	2770mm
Max Walking Speed	2.1Km/h	Overall Width	925mm
Max. Traction	9.2KN	Overall Height	1550mm/2100(Chair/Roof)
Platform Rotary Speed	9-11r/min	Arm Length	800mm
Working range		Boom Length	1490mm
Max. Digging Height	2650mm	Track Length	1210mm
Max Digging Depth	1650mm	Track Width	180mm
Max. Digging Radius	2950mm	Ground Clearance	240mm
Max Dumping Height	1750mm	Platform Width	920mm
Min. Radius of Gyration	1150mm	Platform Ground Clearance	420mm
Radius of Tail Gyration	680mm	Bucket Width	370mm
Max. Sinking Depth of Bulldozer	230mm	As the technology is constantly updated, the technical specifications are subject to change without prior notice
Max. Lifting Depth of Bulldozer	210mm

This small excavator is the one with the most stable performance and the strongest digging power among the 1-ton small excavators;
Suitable for small projects in your own garden nursery.

Model	WTO8	WT 09	WT 10A	WT 10	WT 12	WT 13	WT 135	WT 15
Operating Weight	600 kg	900 kg	1,000 kg	1,000 kg	1,200 kg	1,300 kg	1,300 kg	1,500 kg
Rated Power	8.6kw(11.7 hp)	8.6kw(11.7 hp)	8.6kw(11.7 hp)	8.6 kw(11.7 hp)	8.6kw(11.7 hp)	14.1 kw(19.1 hp)	12 kw(16.3 hp)	14.1kw(19.1 hp)
Engine Brand	KOOP	KOOP	KOOP	KOOP	KOOP	KOOP	YOUPU	KOOP
Engine Type	1-Cylinder,Air-cooled	1-Cylinder,Air-cooled	1-Cylinder,Air-cooled	1-Cylinder,Air-cooled	1-Cylinder,Air-cooled	2-Cylinder,Air-cooled	2-Cylinder,Water-cooled	2-Cylinder,Air-cooled
Bucket Capacity	0.02 m³	0.02 m³	0.025m³	0.025m3	0.03 m³	0.03 m³	0.03 m³	0.03 m3
Bucket Width	350 mm	350 mm	400 mm	400 mm	400 mm	400 mm	400 mm	400 mm
Max.Dig Depth	1,220 mm	1,200 mm	1,600 mm	1,650 mm	1,650 mm	1,800 mm	1,800 mm	1,800 mm
Max.Vertical Dig Depth	1,375 mm	1,050 mm	1,400 mm	1,450 mm	1,450 mm	1,650 mm	1,650 mm	1,650 mm
Max.Dig Height	2,400 mm	2,350 mm	2,490 mm	2,580 mm	2,580 mm	2,500 mm	2,500 mm	2,500 mm
Max.Dump Height	1,650 mm	1,600 mm	1,750 mm	1,850 mm	1,850 mm	1,850 mm	1,850 mm	1,850 mm
Max.Dig Radius	2,460 mm	2,050 mm	2,550 mm	2,500 mm	2.500 mm	2,900 mm	2,900 mm	2.900 mm
Overall Width	730 mm	720 mm	930 mm	950 mm	930 mm	980 mm	980 mm	980 mm
Overall Dimension	2,480*730*1,375 mm	2,480*720*1,250 mm	2,200*930*2,200 mm	2,550*950*2,200 mm	2,550*930*2,200 mm	2,450*980*2,200 mm	2,450*980*2,200 mm	2,450*980*2,200 mm
Gradeability	30°	30°	35°	35°	35°	35°	35°	35°
Roof /Cab	Roof	Roof	Roof	Roof	Roof (Cab Option)	Roof (Cab Option)	Roof (Cab Option)	Roof (Cab Option)
Track	Rubber(Steel Option)	Rubber(Steel Option)	Rubber(Steel Option)	Rubber (Steel Option)	Rubber(Steel Option)	Rubber(Steel Option)	Rubber(Steel Option)	Rubber(Steel Option)
Tool Kit	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Warranty	2 Year	2 Year	2 Year	2 Year	2 Year	2 Year	2 Year	2 Year

What are the advantages of our small excavators?
Advantages of the mini excavator: support multi-function operations, quick attachment of accessories, excavation, crushing, trench clearing, drilling, and bulldozing;
Warranty period: within one year/2000 working hours after delivery, if there is any quality problem, we will provide you with accessories for free.
The latest configuration announcement: Mini excavator can increase the cab and air conditioning! ! !
Provide customized services, your exclusive purchase, personalized purchase, you are different from others!
MAIN PARTS NAME FOR MINI EXCAVATOR
MINI EXCAVATOR DISPLAY PHOTOS
PRODUCTS IN DETAILS
Famous Brand engine is optional ,KOOP ,Briggs& Stratton ,Kubota ;or Chinese famous Brand engine .
Boom defelection
Cab can turn 360 degree rotation ,let's work conviniently
special design hydraulic cylinder ,enextend the service life
dash board with kinds of meter to master it easily
rubber tracks
flexiable seat and shifts ,let works comfortable
Package and shipment
package size :1700.00cm * 1000.00cm * 1100.00cm ,20 feet container can load 4 sets ; 8 sets into 40 HC
accessories for mini excavator selections
OUR CERTIFICATE
ISO 90001 &CE Approval .
Questions for customers
a)How long is the warranty period for our purchase of your product?
the warrenty time is 24 months from the date of B/L or running 1500 hours ,which one is earlier.
b)Where do we buy spare parts from?
We provide more than 6 years of spare parts and technical support; If you need to purchase spare parts, you can contact your local dealer or purchase from our factory.
c)What should be done if there is a quality issue or problem?
We provide 7 * 24-hour after-sales service support. You can send the problems nature by pictures , videos, or provide feedback through WeChat, WhatsApp, E-MAIL, and other channels; We will provide a solution to the problem within 24 hours.
or CONTACT WITH LOCAL DEALER.
d) payment terms: L/C at sight or T/T payment in cash .
e)Delivery time: within 15 days .

COOPERATION WITH US
We are looking forward to forming successful business relationships with the new clients around the world in the near future.
We are one of the fast growing companies in the field of power machinery, garden and small agricultural machinery. With over 12 years dedicated in the field, our company now becomes a professionally well-known brand with absolute advantage in R & D, marketing, and after-sale service in the field of general purpose power machinery and small agricultural machinery. Since the establishment of our company, we aim at providing the world with high quality products at competitive prices. We always use raw materials of high quality standard with improved processing instead of low quality which could not ensure the benefit of customers. For quality control, in order to ensure the quality of our products, we produce most of the die-casting parts and gears by ourselves. And meanwhile, we test each piece of our products before they are released to the market. Meanwhile, a well-educated and organized after-sale service team always provides professional maintenance, technical consultation and technical training.
We are always here looking for distributors from all over the world for mutual-beneficial cooperation.
All products provided 1 year warranty and spare parts are always available anytime after order. Also we provide OEM and ODM service.
Your inquires are always welcome and our sales team will reply you within 24hours.

---
