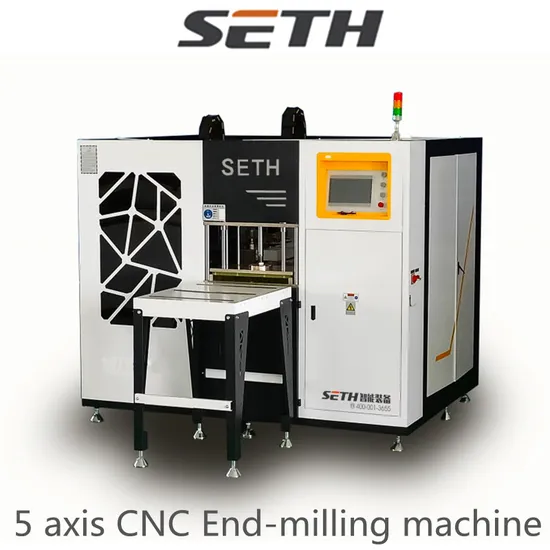

Window-Door Equipment Aluminum Window Machine 5 Axis CNC End Milling Machine for Window Transom Processing

Product Description

Jinan SETH Intelligent Equipment Co.ltd.
Product Description
Feature:
☆ Suitable for sawing and milling of the end tenon and step surface of the profile in the door and window, 6-axis CNC system control, easy programming, high compatibility, more efficient and more reliable.
☆ Two milling motors are installed, one realizes horizontal milling, the other realizes vertical longitudinal cutting, taking into account the end milling operation of various cross sections and strengthening the middle stick, which is more versatile.
☆ Vertical slitting saw blade Angle adjustable, wider application range.
☆ Two milling motors are controlled by five-axis CNC servo, without manual adjustment, which can be processed quickly and easily by selecting a preset program, and can continuously process profiles of different sections.
☆ Adopt precision rack and pinion feed, more stable.
1.It is suitable for sawing and milling the tenons and step surfaces of the
castellated profiles in aluminum doors and windows. It is controlled
by 5 axis numerical control system, with simple programming, high
compatibility, higher efficiency and reliability.
2.Two sawing and milling motors are installed, one to realize horizontal
milling and the other to realize vertical longitudinal cutting, which gives
consideration to the end milling operations of various cross-sections
and strengthening the center stiles, and is more versatile.
3.The angle of vertical and longitudinal cutting saw blade is adjustable,
and the application range is wider.
4.The two milling motors are controlled by five-axis numerical control
servo, without manual adjustment, and can finish machining quickly
and conveniently by selecting preset programs, and can continuously
machine profiles with different cross sections.
5. Adopt precision rack and pinion feed, which is more stable.

Power supply	380V/50Hz
Total motor power	10.00kW
Motor speed	2800r/min
Operating pressure	0.6~0.8MPa
Motor shaft diameter	Ф32mm
Milling cutter diameter	Ф250mmx32mm
saw balde specification	φ300-350mm
X axis adjustment stroke	0-400mm
Y axis adjustment stroke	0-200mm
Z axis adjustment	0-200mm
Overall dimension	2500x1700x2000mm
Weight	850kgs

Detailed Photos
Heavy-duty Aluminum Window End Milling Machinery

Certifications
Packaging & Shipping

Company Profile
is the Leading High End Aluminium&Faç Ade Machine Specialist Manufacturer powered by German Technical Expert Team and established strategic partnership with German Siemens AG and camProx OHG for years.Excellent Staff in line with Vision is our Precious Fortune and Core Competence, not only do we have powerful R&D and Software German Technical Expert Team with decades of rich experience of German Famous Brand in industry, but also our Production Dept. Engineers are well trained by German Experts; The German Craftsmanship Spirit has been deeply embedded in our mind and Machines accordingly.After years of fierce market competition with well-known Germany and Italy brands, we have been developing and producing various advantageous products as below:3/4/5 Axis CNC Profile Machining CentersDouble Mitre Saws and Single Head Mitre SawsNotching Saws and End Milling MachinesCustomized Solutions and Complicated MachiningContribute to our long-term Innovation and strict craftsmanship production persistence, we have got more than 100 Patents and Honorary Qualifications, and awarded as ′China High-Tech Enterprise′ and ′Gazelle Enterprise′, and established the leading position of Aluminium Processing Machines and No. 1 of Facade Machines, we also have been establishing Strategic Partnership with many customers in industries of Facade, Doors&Windows, Industrial Aluminum Profiles, New Energy Vehicles, Rail Transit, Aerospace, Solar, Aluminum Formwork etc., including Permasteelisa Group, CSCEC, JANGHO GROUP, Far East Facade, EFT, YASHA Decoration, XINGFA, AAG, FENGLU, JMA, Press Metal Group, Global Aluminium, etc.Our machines are referring to elumatec machine in Germany, please refer to the technical comparison for your reference,
and more details please refer
