400-500kg/H Rice Mill Machine in Philippines Combine Rice Milling Machine with Diesel Engine

Product Description

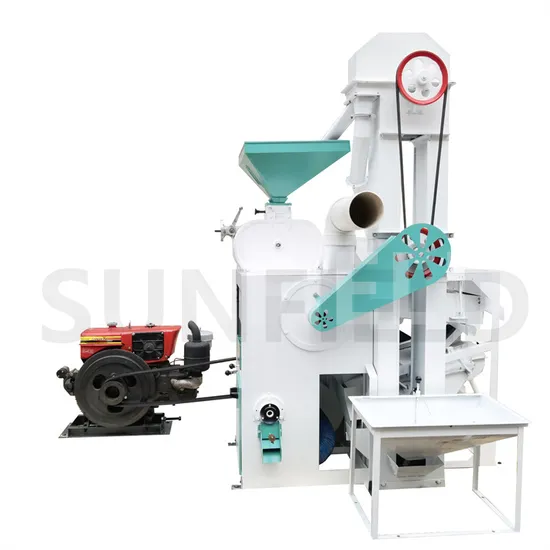

6LN-15/8.5SR COMBINED DE-HULLING AND RICE MILLING EQUIPMENT
Including Diesel-driven, Cleaning Sieve, De-stoner, Rubber Roller Husker,
Iron Roller Husker for ONE-TIME Operation
1. Introduction
6LN-15/8.5SR Combined De-hulling and Rice Milling Equipment is composed with TQS320 Cleaning De-stoner, 6"Rubber Roller Husker, 8.5 Type Iron Roller Rice Mill, and Double Elevator. It features great cleaning, de-stoning, and rice whitening performance, compacted structure, easy operation, convenient maintenance and high productivity, reducing the leftovers at the maximum level. It is a kind of rice processing equipment especially suitable for the areas, where power is shorted.

1	Paddy Inlet	2	Double elevator
3	Double-deck Flat Rotary Cleaning Sieve	4	Gravity De-stoner
5	6"Rubber Roller Husker	6	Paddy Separator
7	8.5 Type Steel Roller Rice Mill	8	Single Cylinder Diesel Engine

2. Product features
ø Independent safe diesel-electric starter, easy and convenient to operate.
ø Improved belt transmission system, more convenient to maintain.
ø Strong inhale steel roller rice milling, low rice temperature, less bran, improve rice quality
ø Unibody base designed for convenient transportation and installation, stable operation, low space occupation;
ø Complete set rice processing procedure, high rice quality;
ø Single cylinder diesel engine, suitable for power shortage areas;
3. Technical Parameter

Model		6LN-15/8.5SR
Rated output ( kg/h)		400-500
Power Model		ZS1115
Power (hp)		22
Rice milling rate		>65%
Small broken rice rate		<4%
Rubber roller dimension		6 inches
Steel roller dimension(mm)		φ85
Overall weight(kg)		730
Overall dimension(L×W×H) (mm)		2650×1250×2350
Power	Electric Motor	18.5 KW
	Diesel Engine	30 hp

4.Core competitiveness
a. Paddy inlet
Steel frame structure, which is more stable and durable, can hold a bag of rice at a time, low height, easy feeding.
b.Double elevator
Double elevator is compact in structure and low in energy consumption. One side of lifting transports the uncleaned rice from paddy inlet, it flows into the other side of the lifting and transports to husker machine for shelling after being cleaned and treated by the stone removing machine. The two common powers for lifting do not interfere with each other.
c. Horizontal cleaning sieve
The two-layer Horizontal cleaning sieve, the first layer screen can effectively remove the large and medium impurities such as straw and rice leaves in the rice, the rice enters the second layer sieve, screens out the fine grass seeds, dust, etc. The impurities in paddy will be cleaned and high efficiency.
D.Gravity De-stoner
The gravity de-stoner adopts a large air volume blow design, which has a large air volume and efficiently removes stones that cannot be screened by the cleaning sieve.
E.Rubber roller husker
It adopts the universal 6-inch rubber roller to shell, the shelling rate can reach more than 85%, the brown rice is less damaged. The husker has simple structure, small consumption and easy to maintenance.
F. Paddy separator
This separator has strong wind power and high efficiency to remove the chaff in the brown rice. The damper is easy to adjust, and the fan shell and the fan blades are made of cast iron, which is durable.
G.Steel Roller Rice Mill
Strong inhale-air steel roller rice mill, low rice temperature, cleaner rice, special rice roller and sieve structure, low broken rice rate, high gloss of rice.
H.Single Cylinder Diesel Engine
This rice machine can be powered by a single-cylinder diesel engine for power shortage areas and mobile rice processing needs; and it is equipped with an electric starter for easy and convenient operation.

5.Flow Chart
6.Production in bulk
