Basic Info.
Transmission Type
Automatic
Max. Work Height
Max. Work Height
Minimum Turning Diameter
≤20m
Maximum Slewing Speed
0.5~1.5r/Min
Maximum Operating Radius
21m
Rotation Scope
360° Full-Rotation
Transport Package
Standard Ocean Freight
Specification
12350*4000*2500mm
Production Capacity
500piece/Year
Packaging & Delivery
Package Size
1235.00cm * 400.00cm * 250.00cm
Package Gross Weight
32500.000kg
Product Description
product title
34m Small Fire Truck DG35M2 China Multifunction Platform Product Description

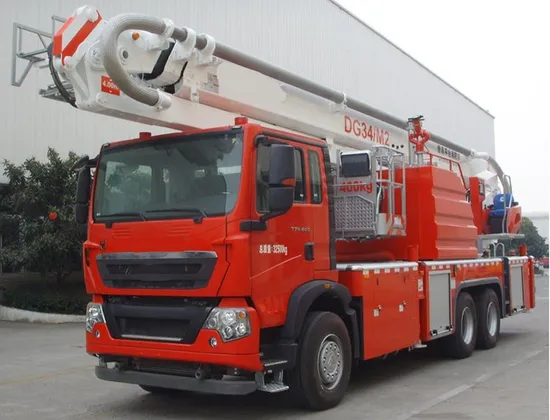

DG34M2 aerial platform fire truck is the main battle vehicle integrates three functions of fire tanker, aerial spray truck, foam truck and aerial truck.This is widely applied in fire fighting and rescue operation in cities and towns, mine, oil field and plant as well as other medium and high-rise buildings, in addition, it also is the first choice for medium and high-rise building fires, rescue of persons in distress and properties.
1.This aerial platform fire truck adopts 6×4 chassis, 3 sections of telescopic booms and one section of flexible boom.2.Electric control and hydraulic drive adopted in each moving mechanism brings the vehicle features of easy operation, flexible movement, safety and reliability and strong practicability.3.It makes operation quick, labor-saving, convenient and stable, also brings large speed regulating range, flexible fine motion and exact movements.4.It is with excellent aerial obstacle-crossing capacity, which has the wider operation scope. Product Parameters
| Boundary dimension | 12350×2500×4000mm |
| Full mass | 32500kg |
| Maximum speed | ≥90km/h (electronic speed limit) |
| Minimum turning diameter | ≤20m |
| Approach angle | ≥17° |
| Departure angle | ≥9° |
| Maximum gradeability | ≥25% |
| Outrigger span | Longitudinal span | 6200mm |
| Horizontal span | 5850mm |
| Work platform load | 400kg |
| Maximum working height | 34m |
| Maximum operating radius | 21m |
| Rotation scope | 360° full-rotation |
| Spread time of outrigger | ≤25s |
| Time for lifting the boom to rated height and rotating 90° | ≤100s |
| Maximum slewing speed | 0.5~1.5r/min |
Fire pump | Rated flow | ≥50 L/s |
| Rated pressure | ≥1.4MPa |
Fire fighting gun | Model | PSKD80 | PS30-50D |
| Rated flow | 50 L/s (±8%) | 40L /s (±8%) |
| Rated pressure | ≤0.8MPa | ≤0.8MPa |
| Range | ≥65m | ≥60m |
