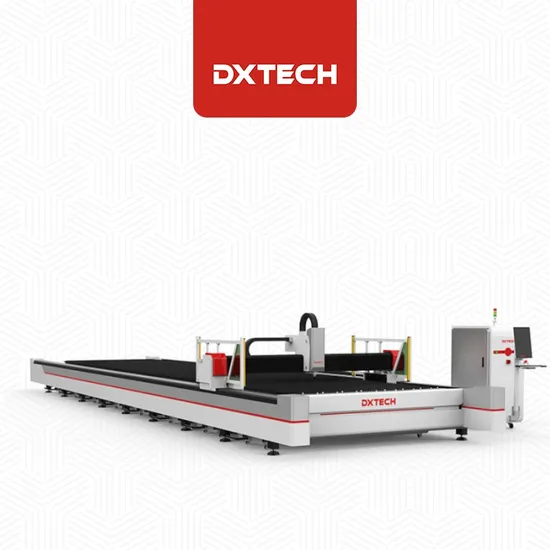

Dxtech Metal Laser Cutting Machine 3000W 6000W Super Large Format Cutting Metal Sheet Stainless Steel Carbon Steel Aluminum

Product Description

Product Introduction

DXTECH W Series Large-area fiber laser cutting machines use a modular design, quickly expand metal cutting regions, and reduce transportation costs. It can realize the timely processing of various graphics and characters and is user-friendly and straightforward. Customized formats are supported. The maximum processing format can reach 2500 mm*12000 mm, and the maximum thickness of the plate can be cut to 25mm. It can meet the requirements of large-format processing. Customized formats are supported.
Features
1. Oversized processing format
The maximum processing format can reach 2500 mm*12000 mm, and the maximum thickness of the plate can be cut to 25mm. It can meet the requirements of large-format processing. Customized formats are supported.
2. High-strength split plate welding bed
Optimize the transportation plan so that it can be loaded into the general container of 20'GP and 40'HQ. Reduce the transportation cost, and the transportation cost is only 1/3 of the frame container transportation.
3. Split frame support table
Reduce the load of the bed structure, decrease the impact of material rushing on the bed structure, ensure the accuracy of the machine, and improve the loading weight of the table.
4. Subdivided Fluid Domain Dusting
The smoke exhaust device automatically senses the laser cutting position to open precise smoke exhaust, closes the non-cutting area for smoke exhaust, fully enclosed smoke control increases suction, and removes smoke to the greatest extent.
5. Replaceable Independent burn-proof sheet metal
Reduce the erosion of slag injection on the bed and improve the life of the bed.
Technical Parameters

Model	DXTECH-2040W	DXTECH-2060W	DXTECH-2560W	DXTECH-2580W	DXTECH-25120W
Working area	2000mm*4000mm	2000mm*6000mm	2500mm*6000mm	2500mm*8000mm	2500mm*12000mm
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Max. acceleration	1.5G	1.5G	1.5G	1.5G	1.5G
Laser power	1kW - 6kW	1kW - 6kW	1kW - 6kW	1kW - 6kW	1kW - 6kW
Laser	Multiple options	Multiple options	Multiple options	Multiple options	Multiple options
Focusing method	Auto/manual	Auto/manual	Auto/manual	Auto/manual	Auto/manual
Maximum speed	150m/min	150m/min	150m/min	150m/min	150m/min

Premium Product Components

Aviation aluminum beam
1) It has the characteristics of corrosion resistance, lightweight and high rigidity, which ensure the high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-twisting, anti-tilting, and
resistance to deformation, etc., to ensure higher cutting accuracy.
Smart Focus Laser Head
1) Heat dissipation: Both collimating mirror and focusing mirror set are heat dissipation accessories.
2) Cooling airflow nozzles are added to effectively protect the nozzles and ceramics and extend the working time.
3) Tracking aperture: By 35mm aperture, the interference of stray light is effectively reduced.
4) Auto-focusing: free from human interference, focusing speed up to 10m/min and repeat accuracy about 50 microns.
Thick-walled carbon steel pipe welding bed
1) Adopt a high-quality carbon steel welding machine, more stable and durable.
2) High strength machine tool adopts 600ºC stress relief annealing treatment, with strong structural rigidity, small deformation, and vibration to ensure cutting accuracy.
Samples Display
Application
Why choose DXTECH?
FAQ
1. Do you have the CE document and other documents for customs clearance? A: Yes, we have the Original. At first, we will show you and after shipment, we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
2. Payment terms? A: trade assurance/TT/West Union/Paypal/LC/Cash and so on.
3. What's the max. cutting thickness? A: Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass, and other high-reflection sheet metal.
4. Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.
5. How long is the delivery time?
A: For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.

---
