Txk Light Duty 1ton Electric Mechanical Engine Lifting Chain Hoist with Trolley

US$450.00-1,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

SSDHL01-01S

Application

Double Beam Crane, Gantry Crane, Bridge Crane, Single Grinder Crane, Small Crane

Type

Electric Hoist

Sling Type

Chain

Lift Speed

6.6m/Min

Maximum Lifting Height

as Your Request

Chain Falls

Certification

CE, ISO9001:2000

Condition

New

Color

Yellow

Traveling Speed

21m/Min

Lifting Motor

1.5kw

Spec of Load Chain

7.1m

I-Beam Recommend

58-153mm

Control Voltage

24/36/48V

Power Supply

3p,380V,50Hz

Insulation Grade

Rotation Speed

1440m/Min

Speed Type

Single/Double

Working Grade

Transport Package

Plywood Case

Specification

Trademark

TXK

Origin

China

HS Code

84251100

Production Capacity

5000set/Month

Packaging & Delivery

Package Size

150.00cm * 80.00cm * 80.00cm

Package Gross Weight

61.000kg

Product Description

Product Description
Electric Chain Hoist

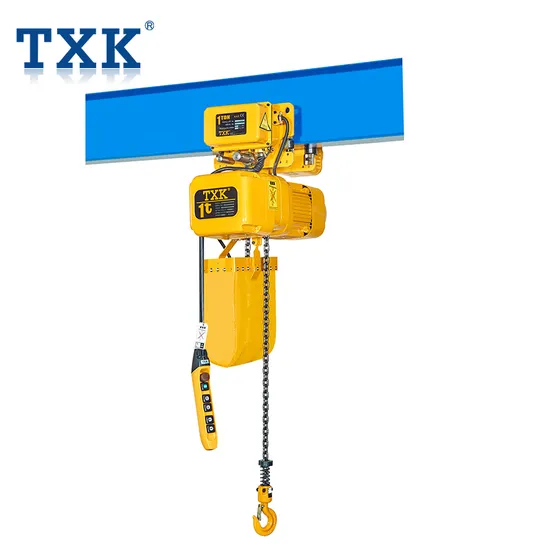

TXK Light Duty 1ton Electric Mechanical Engine Lifting Chain Hoist with Trolley

Single Speed	Technical Parameters
Model	SSDHL
Model	0.5-01S	01-01S	1.5-01S	02-01S	02-02S	2.5-01S	03-01S	03-02S	03-03S	05-02S
Capacity(T)	0.5	1	1.5	2		2.5	3			5
Lifting Speed(M/Min)	7.2	6.6	8.8	6.6	3.3	5.4	5.4	4.4	2.2	2.7
Motor Power(Kw)	0.8	1.5	3.0	3.0	1.5	3.0	3.0	3.0	1.5	3.0
Rotation Speed(R/Min)	1440
Insulation Grade	F
Power Supply	3P 220V-690V
Control Voltage	24V/36V/48V
No. Of Chain	1	1	1	1	2	1	1	2	3	2
Spec. Of Load Chain	φ6.3	φ7.1	φ10.0	φ10.0	φ7.1	φ11.2	φ11.2	φ10.0	φ7.1	φ11.2
Net Weight(Kg)	47	61	108	115	73	115	122	131	85	151

Dual Speed	Technical Parameters
Model	SSDHL
Model	0.5-01D	01-01D	1.5-01D	02-01D	02-02D	2.5-01D	03-01D	03-02D	03-03D	05-02D
Capacity(T)	0.5	1	1.5	2		2.5	3			5
Lifting Speed(M/Min)	7.2/2.4	6.9/2.3	9.0/3.0	6.9/2.3	3.3/1.1	5.4/1.8	5.4/1.8	4.5/1.5	2.4/0.8	2.7/0.9
Motor Power(Kw)	0.8/0.27	1.8/0.6	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0
Rotation Speed(R/Min)	2880/960
Insulation Grade	F
Power Supply	3P 220V-690V
Control Voltage	24V/36V/48V
No. Of Chain	1	1	1	1	2	1	1	2	3	2
Spec. Of Load Chain	φ6.3	φ7.1	φ10.0	φ10.0	φ7.1	φ11.2	φ11.2	φ10.0	φ7.1	φ11.2
Net Weight(Kg)	54	74	144	150	86	148	159	168	102	184

Packing & Shipping:
Packaging Details: Plywood Cases (Fumigation-free packing)
Shipping Details: 7 Days Rapid Delivery
Production description:
TXK Electric Chain Hoist
1. Aluminum alloy shell , light but hard .
2. G80 Load chain or Japan or Germany FEC G80 load chain, can be used in poor invironment .
3. Hook: be hot forged with perfect strength , hard to break .
4. Push button, remote control : imported from Taiwan .
5. 3 phase electric chain hoist & Single phase electric chain hoist is optional
