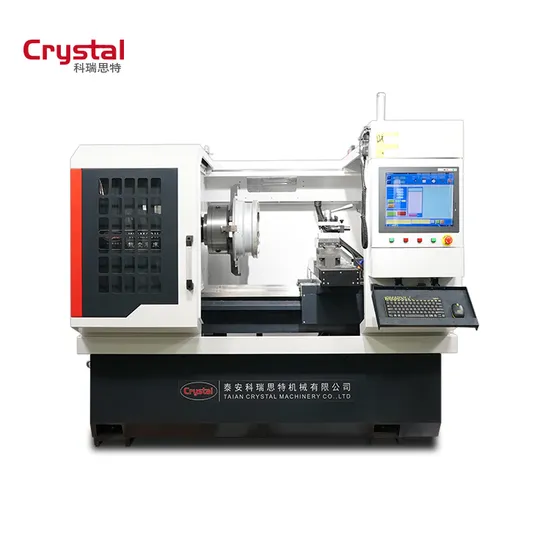

CNC alloy wheel lathe machines are designed for repair and refurbish alloy wheel , Be applied to the full face and lip of the wheel. The machine is very easy to operate ,operator don't need to learn complicated programme and do higher efficiency ,spectacular finishes
ITEMS
| WRM28H
|
Max. swig over bed (mm)(inch)
| Φ770(30')
|
Max. Diameter of alloy wheel(mm) (inch)
| Φ710(28')
|
Max. Stroke of the X-axis(mm)
| 390
|
Max. Stroke of the Z-axis (mm)
| 880
|
Width of the rail (mm)
| 300
|
Length of the rail (mm)
| 1320
|
Size of the three-jaw chuck (inch)
| 13''
|
Range of spindle speed (RPM)
| 500-2000
|
Spindle speed control
| Automatic
|
Spindle bore (mm)
| Φ82
|
Taper of spindle bore
| 1:20(Φ90)
|
Taper of spindle nose
| A2-10
|
Adjustable stroke of carrier in X direction
| 100mm
|
Max. size of tool post
| 25×25mm
|
Stations of tool carrier
| 4 position
|
Min. setting unit of motor
| (Z) long 0.001mm, (X) cross 0.001mm
|
Moving speed of post
| (Z) long 8m/min, (X) cross 6m/min
|
Motor power
| 7.5KW
|
Machine size
| (L/W/H) (mm)
| 2200/1620/1870
|
Package size
|
| 2300/1720/2170
|
Net weight
| 2400KGS
|
