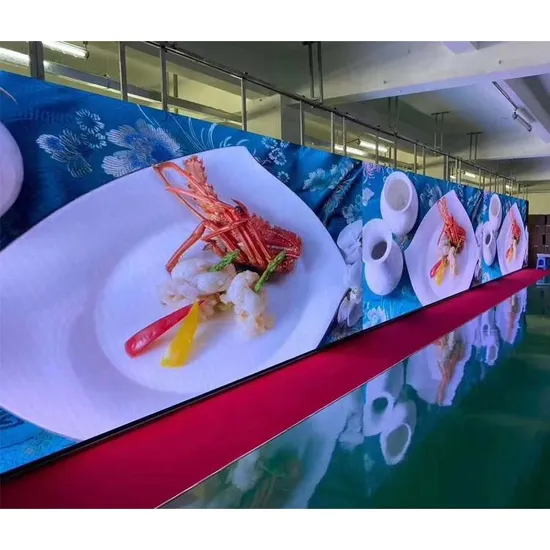

Small LED Display High Definition P1.8 P2 P3 LED Wall Indoor LED Display Screen

Product Description

Product Description
Description of indoor led screen display :
The indoor conventional screen is a full-color high-definition LED display screen, which is composed of a die-cast aluminum frame. With excellent EMC performance, minimalist circuit and modular design, there are a variety of box sizes to choose from, as well as a variety of assembly methods to choose from.
Features of indoor led screen display :
High refresh rate High grayscale High efficiency and stability Seamless installation Easy to install More choice on cabinet size Application of indoor led screen display :
Its widely used in conference rooms, hotels, shopping malls, dispatching rooms, monitoring rooms, stage backgrounds, studios and other indoor places .
Product Parameters

Model	HRSN-P1.8	HRSN-P2	HRSN-P2.5	HRSN-P3
Pixel pitch	P1.86	P2	P2.5	P3.07
Pixel density (dots/m² )	289,050	250,000	160,000	105,625
LED Type	SMD1515	SMD1515	SMD2020	SMD2020
Scan mode	1 / 43	1 / 40	1 / 32	1 / 26 mode
Module size ( mm )	320*160	320*160	320*160	320*160
Module resolution ( dots )	172*86	160*80	128*64	108*54
Cabinet size ( mm )	640*640	640*480	320*640	320*480
Cabinet resolution ( dots )	344*344 / 344*258 / 172*344 / 172*258
Cabinet thickness	63mm ( including led module )
Screen brightness ( cd/m² )	800-1200	800-1200	800-1200	700-1000
Cabinet weight ( kgs/pc )	22.0	22	22	22
Refresh rate ( Hz )	1920-3840	1920-3840	1920-3840	1920-3840
Gray scale ( bit )	14-16	14-16	14-16	14-16
Average voltage ( W/m² )	190	230	210	230
Max power voltage ( W/m² )	580	680	630	670
Minimum sight distance(M)	1.5-80	2-80	2.5-80	3-80
Out shell material	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy
Protection grade	IP65	IP65	IP65	IP65

Detailed Photos
Company Profile
FAQ
Q: What is your company's main product? A:Our main product is Rental LED display,Outdoor LED display,Indoor LED display,transparent LED display, Floor tile led display etc.
Q:What is the minimum order?
A: yes, our company mainly deals in wholesale business,but if you insist on buying one, or you only need one set,we will also deliver the goods to you.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, Western Union etc.
Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in monitors, tablets, pos all in one for more than 16 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE, ROHS, FCC certifications.
Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment
time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.
Q:I would like to ask you if it's possible to have my logo on the product.
A:Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing

---
