Product Description

PVC Dosing System To the large scale PVC pipe/profile production factory, Advanced mixing system is essential,
Traditional mixing work is that people weigh and batching material, than move the mixed materials to extruder by people, this old way just fit for some small factory, and has many defects:
1. Artificial mixing is easy to make a mistake, because this is a repetition work, so worker is tired easily. The product percent of pass may be affected.
2. Labour intensity is large, human cost is high
3. Chemical raw material damage the worker's health.

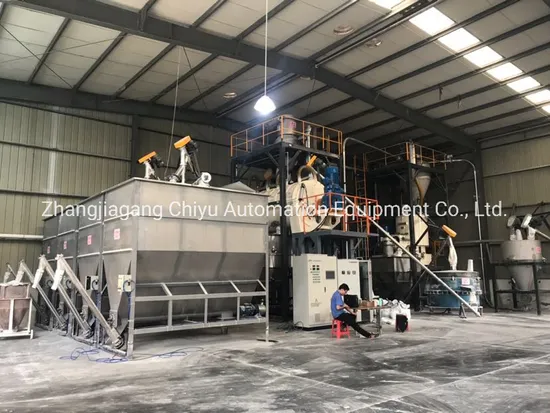

In order to salve these problems, our company design a PVC mixing system which the computer can automatic control weigh and batching, and feeding to extruder. This mixing system consist of automatic weighing, after weighing put the material in to the mixer unit, than use the air-operation pipeline transport the mixed material to extruder. The advantage of PVC mixing system:
1. Automatic weighing controlled by computer, that improves the accuracy and efficiency of burdening, and reduces the chemical damage to worker.
2. the air-operation pipeline transportation reduces the cost of worker, and increase the production efficiency, and all the material is in the closed pipe, so avoided dust to pollute the factory.

no	item	quantity
1	PVC loading station	1set
2	CaCO3 loading station	1set
3	AUTO vacuum sucking and dosing system	1set
4	Additive loading and central de-dusting system	1set
5	5group non-dust loading silo	5set
6	LCS-50Kg additive auto dosing system	1set
7	Mixer group SRL-Z300/600A and de-dusting system	1set
8	Dry blend vacuum sucking system	1set
9	PLC auto control system	1set
10	Electric wire cable and bridge, supplied by USER	1set
11	PAKAGE AND transportation cost	1set

---
