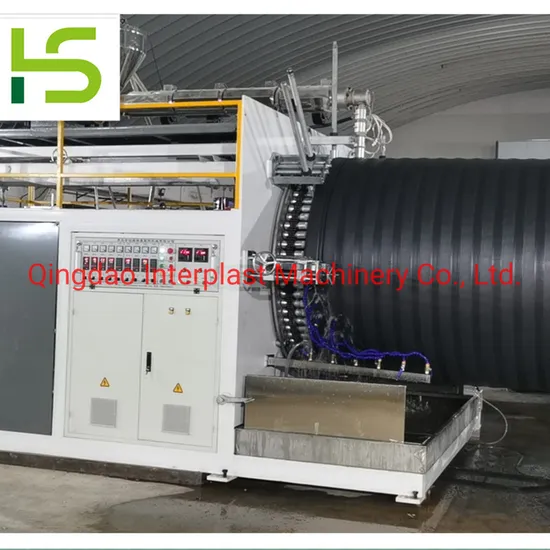

400-1600mm Plastic HDPE/PP/PVC/PPR Glassfiber Hollow Wall Winding Pipe Machine with 45 Extruder Clading Inside

Product Description

400-1600mm Plastic HDPE/PP/PVC/PPR glassfiber Hollow Wall Winding Pipe Machine with 45 Extruder Clading Inside
Standard: EN13476-3
Structure: Double Plain Wall
Application: Infrastructure application
Diameter: 200-4000mm
Ring Stiffness Values SN4/SN8/SN12.5
Feature
The line adopt two sets of single screw extruders to ensure high speed and high quality extruding
Unique design of composite die head and forming by spiral rotation ensures high efficiency and quality.
Convenient and stable operation
Pipes can be used for manhole and septic-tank with advantages of easy and safe installation.
Anti-static gas drainage pipes for mines can be produced
Special pipe fittings are adopted and connection is very convenient and economical.

Model	(mm)Pipe range	Extruder			(KW)50% Installed power(kw)Loading factor 50%	kg\h Max.Capacity	Overall dimension(L*W*H)
		Model	L\D	Motor power
ITP-800	200-800	SJ75\33 SJ65\33	33:1	55 30	145	290	23*10*3.2
ITP-1200	300-1200	SJ90\33 SJ65\33	33:1	75 37	175	380	24*10*3.5
ITP-1600	800-1600	SJ100\33 SJ75\30	33:1	110 45	250	540	26*11*5
ITP-2200	1200-2200	SJ100\33 SJ75\30	33:1	132 55	280	740	32*16*6
ITP-2600	1400-2600	SJ120\33 SJ75\33	33:1	132 75	260	500	39*17*6.5
ITP-3000	1800-3000	SJ120\33 SJ75\33	33:1	160 75	330	820	42*17*7
ITP-4000	2000-4000	SJ150\33 SJ90\33	33:1	250kw 90kw	440	1200	48*20*7.5

3 meters diameter Hollow Wall Winding Pipe Structure:
Plastic HDPE tank application: Septic tank and water storage tank;
Spiral Solid wall winding pipe extrusion machine(use same forming machine, but you need to add extra plate mould)
Two layers HDPE hollow wall winding spiral pipe production machine
Hollow wall winding pipe end bell and spigot online production
4000mm Diameter Hollow Wall Spiral Pipe Extrusion Machine under installation:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support by Bureau Veritas.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Frequently Asked Question
1.What's warranty we assure? --1 year .
2.How to solve the technical problems? --We have one professional technicians team who can solve problems .
3.Delivery time? --In 30 days after payment
4.How to ship the machines? --We order ship by customer's requirement.
5,Is there any spare parts of machine? --Yes, we will send it togehter with machine;
