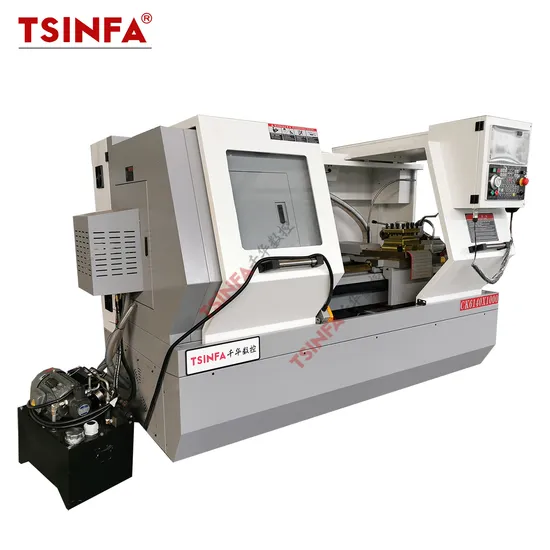

Tsinfa Factory Sell CNC Mini Lathe Machine Ck6140 Small Turning Tool

Product Description

Product Description
CK6140 series CNC horizontal lathe machine has the characteristics of high precision, high power, high rigidity, etc. Its main components and structures are optimized and designed. It is the preferred equipment for processing shafts, discs, sleeves, special-shaped surfaces and screw workpieces.
CNC lathe machine is a good choice if you have pieces that need to be mass-produced. It can automatically control the workpiece rotation and tool movement through the NUMERICAL control system, there is no need to manually control. For example, you need several rings of different sizes are processed on a round bar, the lathe can automatically process rings by inputting the corresponding size and displacement code in the system program. After the completion of processing, you can replace the newworkpiece manually, or you can also be configured with an automatic feeding manipulator (robot), greatly improving the processing efficiency.
The choice of CNC lathe depends on the size of the workpiece and the type of processing, according to the degree of automation requirements can also be configured with a manipulator and automatic chip removal device. We Tsinfa have CNC lathe machine, high precision, good stability, and variety is more complete, convenient for your one-stop purchase.
1. The machine tool headstock and bed, tailstock, pallet and other joint surfaces are manually scraped and polished, and the whole machine is tested with a laser interferometer to effectively ensure the positioning accuracy, repeat positioning accuracy, reverse clearance and stability of the Z axis and X axis.
2. The machine tool is made of high-strength cast iron, with special materials such as copper and chromium added, and the bed guide rails are quenched, which effectively improves the wear resistance and stability of the machine tool.
3. The machine tool adopts centralized lubrication, and the headstock lubrication adopts high-temperature resistant grease. For hot weather, it ensures the cleanliness and heat dissipation characteristics of the headstock, and effectively extends the service life of the bearings.
4. The machine tool spindle adopts Wafangdian bearing, the spindle through hole is φ52mm, and the machine tool gear adopts precision grinding, which effectively improves the gear hardness and reduces the machine tool noise.
5. The machine tool adopts a good brand ball screw, the Z-axis ball screw, and the X-axis ball screw adopts a tensile structure, which improves the accuracy of the outer circle and inner hole size of the workpiece.
6. The machine tool adopts a well-known brand four-station electric tool holder. Tool handle size: 20x20mm.

Product Parameters

Specification	CK6140	CK6150	CK6163Q
Max .Swing over bed	400mm	500mm	630mm
Swing over carriage/cross slide	200mm	270mm	340mm
Max. Work piece Length	750mm	1000/1500/2000/3000mm	1000/1500/2000/3000mm
Spindle taper	A2-6	A2-8	A2-8
Chuck size	200	250	250
Thru-hole of spindle	52	82/105	82/105
Spindle speeds	Three speed transmission
	60-2000	45-1600	45-1600
Tailstock center sleeve travel	120mm	130mm	130mm
Tailstock center sleeve taper	MT4	MT5	MT5
Positioning accuracy	+-0.02mm	+-0.015mm	+-0.015mm
Repeatability accuracy	+-0.01mm	+-0.01mm	+-0.01mm
X/Z rapid traverse	4/6m/min	6/8m/min	6/8m/min
Spindle motor	5.5kw	7.5kw	7.5kw
Bed width	335mm	400mm	400mm

Detailed Photos
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there?Our factory is located in Tengzhou City , Shandong Province, 277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .Q6: What's the MoQ?1 set .(Only some low cost machines will be more than 1 set )We want to know:
1. We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible,
better to send us workpiece drawing, so that we can recommend you most suitable model!
2. lf need ClF Price, please kindly tell us the port of destination.

---
