Universal Tools Sharpener Universal Tools Grinder Universal Cutter Grinder U2 U3

Product Description

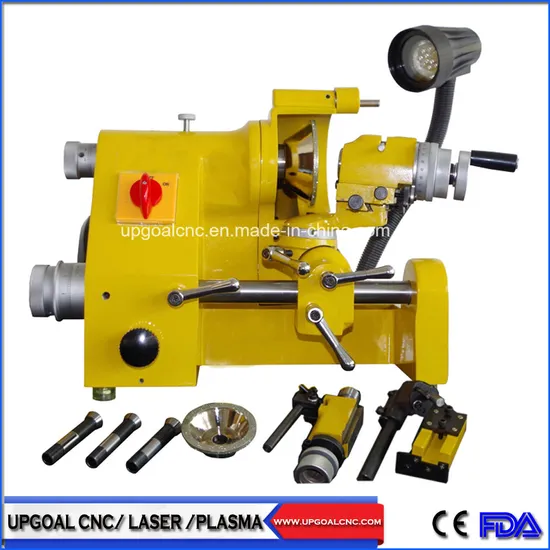

Universal Tools Sharpener Universal Tools Grinder Universal Cutter Grinder U2 U3

U2 Model
U3 Model( with special accoessories, can for milling tools/drilling tools/lathe tools grinding)


Applications
UPGOAL serials U2 /U3 Universal Tools Sharpener, with development of the carved industry, precisely designed by engineers. It is made up by main unit, wheel, spindle, drives, micro-feed and the grinding wheel dresser, knife the composition, structure, novel, modeling beautiful, high precision, good performance, easy to use, easy maintenance, applicable: computer engraving machine, machine engraving machine, engraving machine and high-speed rotary die knife cone head, edge grinding, and milling cutter blade cutting edge, grinding angles accurately. Universal Grinder is equipped with more advanced type of sharpener, my company is quality first, service-oriented for the purpose, sincerely for the majority of mold engraving machine, computer engraving User Services.
Technical Parameters

Art.Name	Specification and TDR
Wheel	φ100×φ20×50
speed of spinde	5200r/min
Max.Collect Dia.	φ3.175mm-16mm
Longitudinal travel of cutter index	140mm
Cross travel of cutter index	18mm
Longitudinal travel of Spindle	6mm
Grinding cone angle range	0°-180°
Grinding negative angle range	0°-52°
Grinding back angle range	0°-44°
Motor	0.375KW, AC 220V, 50/60Hz, single phase Or 0.25KW, AC380V, 50/60Hz, three phases

Grinding wheel & collets
Accessories & packing
Reference working videos https://youtu.be/szMLiac_PnE
For more information, just feel free to contact us!
Jinan Upgoal Mechanical Equipment Co.,Ltd
upgoalcnc.en.made-in-china.com, Mob: +86-13869132173
