Hydraulic Paper Mill Roll Stand Machine for Corrugated Carton Box Machine

Product Description

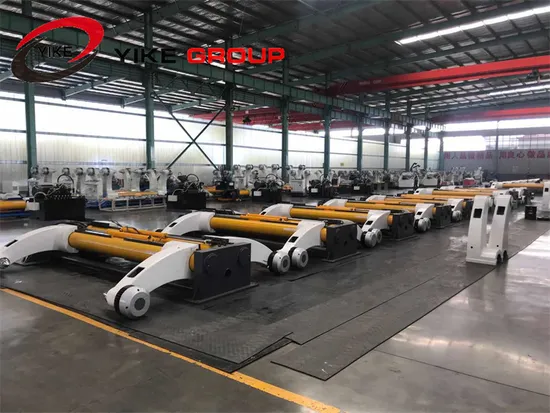

ZJ-V6 hydraulic shaftless mill roll stand
structural feature:
★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
★brake adjustable adopts multipoint braking system.
★every stand matched two sets paper car , and they can paper on the both sides at the same time.
★ tooth jammed with dual-stage head and jammed the first three \ four inches dual-stage.
Technical parameters:
1.Backstands action: full hydraulic operation
2,the range of clamping paper:MAX2200mm MIN800mm
3,clamping diameters:MAX¢2200mm MIN¢350mm
4,Unilateral maximum load: the MAX.5000Kg
5,Paper holder spindle diameter:¢270mm
6,Working air pressure(Mpa):0.4---0.8Mpa
7,working power:voltage 380V frequency 50Hz
Hydraulic system parameters: 1,working pressure (Mpa):16---18Mpa 2,hydraulic cylinder working range(lifting):¢125×440mm
3,hydraulic cylinder working range(clamping /Traverse):¢80×1300mm
4,hydraulic station motor power:4KW short (S2)working system rated voltage and frequency:380V 50Hz
5,hydraulic station solenoid valve working voltage:220V 50 Hz
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	Material
Main shaft	Day steel production	Thick-walled seamless steel pipe diameter of 270mm
Swing arm	Production by own	Resin sand gray ironHT250
wallboard	Jigang prduction	Q235AWelding parts
bearing	HRB,ZWZ,LYC
Inflatable jam head	Zhejiang xusheng	3,4inch shared
Main electrical appliance	France Schneide
Pneumatic components	Japan SMC or taiwan AirTAC
Hydraulic station	Shandong zaozhuang	Taiwan oil pump solenoid valve
Six brake pumps	Changzhou Sincerity

Hydraulic paper trolley, track
Structural feature:
★ On the double position paper on design, hydraulic clamp for paper, paper unloading hydraulic push rod save manpower, hydraulic motor traction feeding trolley.
★ track buried whole, the main frame of the 18th channel, beam and ¢ 20mm drawing bar welding, rail length 9000mm.
★ Each paper Paper holder with both the car from both sides of the paper simultaneously.
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
track and paper trolley		NO16channel steel,Q235A,steel strip
bearing	HRB,ZWZ,LYC

---
