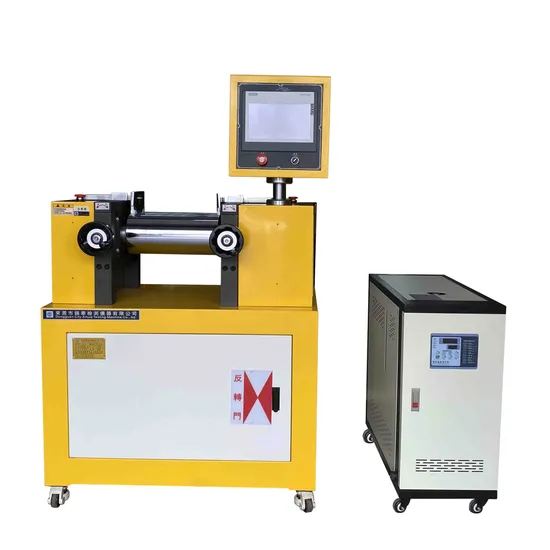

PLC Oil Heating Plastic Lab Two Roll Mill

Product Description

Introduction:
The open mill is a kind of plastic material mixing equipment with adjustable gap between two parallel rollers. Its main function is to mix and plasticize uniformly mixed raw materials. In the rubber mixing process, the open mill mainly relies on the extrusion and shearing effects of two relatively rotating rollers on the rubber material. After multiple kneading and mixing, the mixing process will also be accompanied by chemical effects. The internal macromolecular chain is broken, so that the various components inside the rubber compound are evenly mixed and dispersed.
Its main function is to make the product meet the quality and color required by the customer. In order to meet the customer's requirements, the experimental results and their ratios are used in the production line, and this machine is to mix the test materials and compounding additives evenly.
Product performance:
1. The two rollers are independently driven by geared motors, with precise speed control
2. Hard chrome-plated mirror KDB material solid roller, reliable quality, high surface finish
3. Safety anti-special touch type automatic stop and reverse half circle protection device, safe and practical
4. Electric heating or oil heating can be selected according to process requirements
5. A special mold temperature controller can be selected to control the roller surface temperature and its distribution with high precision
6. The distance between two rollers can be adjusted manually
7. High-strength aluminum alloy frame, light and beautiful, durable
Application range:
Mainly used in rubber and its products, plastics and its products, polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizer, stabilizer and other industries.
Its main use is to test raw materials After mixing, its physical properties change and contrast.
Such as: color dispersion, light transmittance, material appearance
Color matching test
Soft and hardness test
Test stabilizer
Physical test
Chemical test
Various special ingredients
Small production operations
Technical Data:

Technical Parameter Of XH-401COP lab two roll mill
Applicable materials	PP, PE, PVC, rubber, etc.
Mixing capacity	0.5-1kgs or designated
Roller diameter	120mm or designed
Roller width	350mm or designed
Roller gap	0.1 - 5mm (adjustable)
Speed of roller	0-30r/min
Speed of Radio	18r/min
Heating mode	Oil heating
Control Mode	Siemens PLC Control System
Safety device	protective cover, safety lever, reverse door, emergency stop button
Motor	1HP (2 Sets)
Power supply	380V/50Hz/3 phases or Customerized

Mirror Rollers: Protective Cover:
Control Panel: Sample Sheets:
Our Company:
Our Team:
Our Show Room:
Our Customer's Laboraotry:

---
