in Stock Valve Polishing Machine with Good Price

US$4,800.00-7,600.00 1 Piece (MOQ)

Basic Info.

Model NO.
QD53
Type
External Grinding Machine
Processing Object
Valve
Abrasives
Grinding Wheel
Controlling Mode
PLC
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Valve Grinding Machine
Precision
Precision
Certification
ISO 9001
Condition
New
Max. Valve Height
600mm
Max. Valve Diameter
800mm
Grinding Diameter
50-300mm
Workbench Speed
27rpm
Spindle Motor Power
3kw
Overall Dimension
500*900*1800mm
Transport Package
Ship/Train
Specification
400kg
Trademark
SNALPO
Origin
China
HS Code
8467299000
Production Capacity
400pieces/Year

Product Description

Product Description

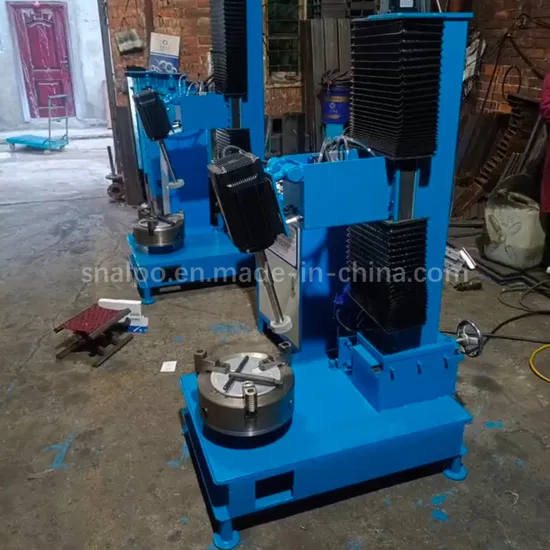

1. The machine is suitable for grinding the inner walls of valves of various diameters, which can improve surface quality.
2. The operation of the machine is controlled by a program, and the workbench can rotate 360 ° with adjustable speed. The grinding wheel head is automatically fed and controlled by a servo motor.
3. The machine can be equipped with protective covers to prevent dust pollution in the workshop.

Product Parameters
Models QD53 QD104 QD207
Max. valve height 600mm 800mm 950mm
Max. valve diameter 800mm 1200mm 1800mm
Grinding diameter 50-300mm 100-400mm 200mm-700mm
Workbench rotate angle 360° 360° 360°
Workbench speed 27rpm 27rpm 27rpm
Spindle motor power 3kw 3kw 3kw
Lifting motor power 0.75kw 0.75kw 0.75kw
Spindle speed 0-8100rpm 0-8100rpm 0-8100rpm
Overall dimension 500*900*1800mm 800*1400*2200mm 1200*1800*2700mm
Machine weight 400kg 700kg 1200kg
