Excavator Interface Gasket

Product Description

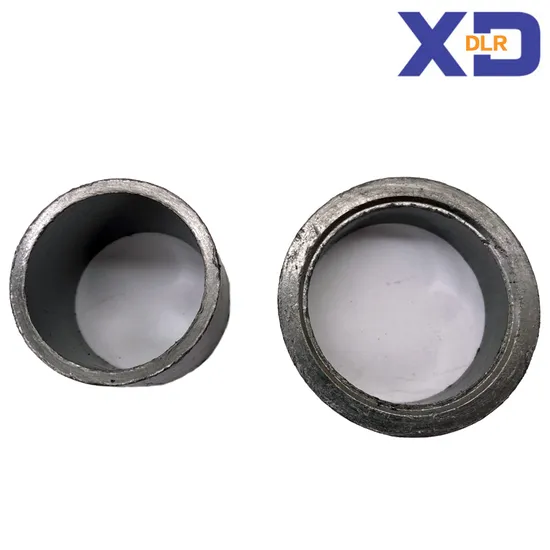

Custom Size Auto Exhaust Muffler Graphite Mica Gasket
Product Description:
Excavator Interface Gasket

Item Name:	Auto graphite gaskets
Application:	suitable for auto exhaust system
Size:	Customized
Material:	pure expanded graphite / foil reinforced with stainless steel wire mesh
Surface:	glossy
Feature:	Feature: high working temperature and pressure, excellent sealing ability,
MOQ	500 pcs
Sample Day	1-10days
Delivery Day	7-28days (depends on size & q'ty)

Product structure :


spiral wound gasekest,have 4 types:
SW - Basic Type
Basic construction type without solid outer and inner ring is reinforced with several plies of
metal with
filler to give greater stability and better compression characteristics. - Suitable for tongue and
groove, male
and female or grooved to flat face flange assemblies.
SWI - Inner Ring Type
Solid inner metal ring acts as a compression stopper. To prevent accumulation of solids, reduce
turbulent flow of process fluids and minimize erosion. The gasket is between flange bore and the
inside
diameter.The annular space is filled up by solid inner metal ring. - Suitable for male and female
pipe flanges .
SWC - Outer Ring Type
Solid outer ring accurately locates the gasket on the flange face to give the additional radial
strength to
prevent the gasket blowout and acts as a compression limiter. In case of installing the outer ring,
it is very easy
to install the gasket to flange face because the end of outer ring will touch at bolts - Suitable
for use with flat
face and raised face flanges.
SWCI - Inner & Outer Rings Type
An inner ring and outer ring type gasket will give an additional compression limiting stopper for
gasket inner
and outer side. It will prevent the corrosion on flange face at annular space. - Suitable for use
with flat face
and raised face flanges and specified for high pressure/temperature service - Class 900LB and above
or where
corrosive or toxic media are present.

Product specification:

1. Size: 8~3000mm
2. Pressure:
(1) Graphite Spiral Wound Gasket: ≤30.0Mpa
(2) PTFE Spiral Wound Gasket: ≤20.0Mpa
3. Temperature:
(1) Graphite Spiral
Wound Gasket: -250°C to 870 °C
(2) PTFE Spiral Wound Gasket: -200 °C to 260 °C
We provide two types of package as Brand Packing and Neutral Packing!We can also pack the goods as customers' demand
Our product pictures:
high temperature resistance, oil resistance,hot air aging resistance,ozone resistance good vacuum performance excellent physical and mechanical properties good chemical corrosion resistance,good radiation resistance
OEM/ODM Service are available.Can design and produce various Non-standard Rubber Parts,
according to your requirement.
High temperature exhaust gasket material 45.2*5.5*60.7*27.2
Models and logos can be customized according to your requirement Designs and specification are acceptedGenerally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.we could offer the sample for free charge but do not pay the cost of freight. Company Information :
Our company have been engaged in auto parts industry for many years, we are not only dealing with the domestic market but also with the foreign market. The quality of our products is well accepted by our clients and our delivery time is very short. We mainly deal with the high level products. Please contact us if you are interested in our products!

Custom Size Auto Exhaust Muffler Graphite Mica Gasket
WHY CHOOSE US :
1.Updated product design
2.Optimized materials selection
3.Advanced manufacturing process, with global standards
4.By long time testing, quality proved to be excellent
5.Factory direct supply.
6.Customized size available.
Custom Size Auto Exhaust Muffler Graphite Mica Gasket

---
