Z3040 Mechanical Drive Drilling Diameter 40 Warp Arm Radial Drilling Machine

Product Description

Z3040 Mechanical Drive Drilling Diameter 40 Warp Arm Radial Drilling Machine

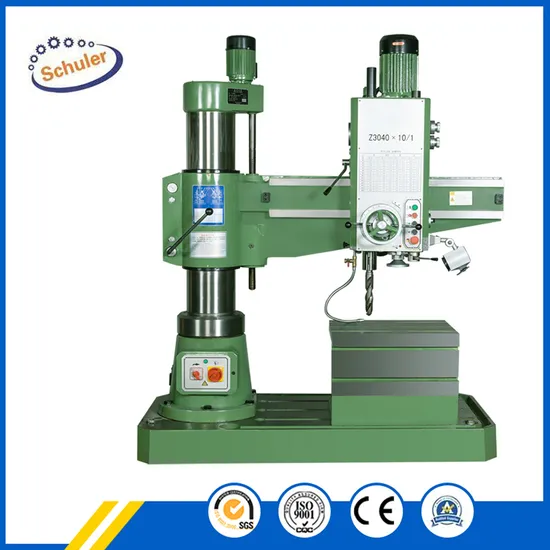

Product picture:
Features:
The radial drilling machine model Z3040,Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.
Drilling Machine Technical Parameters:

SPECIFICATIONS	Unit	Z3040X14/II
Max. drilling dia	mm	Cast iron 40 steel 32
Distance from spindle nose to table surface	mm	280-1250
Spindle center to column generating distance		350-1350
Spindle travel	mm	270
Spindle Cone		4
Range of spindle speeds	r.p.m	40-1250
Spindle speed series		6
Spinde feeding range	r.p.m	0.1-0.25
Spinde feeding step	Mohs	3
Rocker rotary angle	°	±90°
Main motor power	kw	3
Movements motor power	kw	0.75
Machine weight	kg	2200
Overall dimensions	mm	1800x810x2200

Drilling Machine Details:
Drilling Machine Package delivery:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
