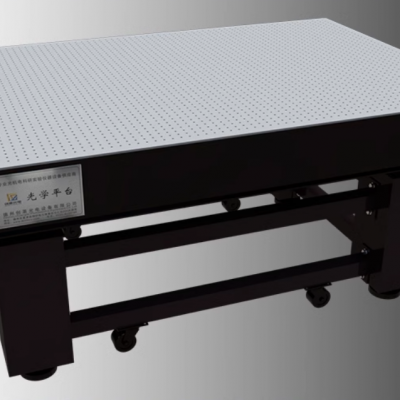

Chuanglai Optoelectronics Optical Platform Precision Damping Vibration Isolation Optical Platform Optical Experiment Seismic Platform Optical Seismic Isolation Platform

Product Description

Product Description
Structure: Three-layer sandwich honeycomb core structure. Upper table: 6mm thick 430icr17 high magnetic permeability stainless steel, with matte surface treatment (to avoid reflection of the table).
Internal support: Steel honeycomb support structure + high composite rubber pad, which can control the vibration response to a greater extent.
Lower bottom: 4-6mm thick carbon steel, with anti-rust paint inside and black plastic spray on the surface.
Side panel: Inner carbon steel plate, outer black aluminum-plastic plate, beautiful and practical, with stainless steel plate wrapping the four corners.
Flatness: 0.02mm/600*600mm, higher than similar products at home and abroad.
Vibration isolation material: Damping vibration isolation pad specified in the national standard (GB/T20029-2005).
Natural frequency: 3HZ-8HZ (related to load and actual practical conditions).
Roughness: Surface roughness is 0.8μm (higher than similar products at home and abroad).
Bracket: 80mm/120mm/200mm made of carbon steel. Spray black craft paint on the surface. Equipped with adjustable bearings for easy adjustment of the level
Adjustment range: height adjustable + 25mm (other height adjustment brackets can be customized)
Hole spacing: 25mm*25mm
Aperture: M6 National standard metric thread
thickness: 50mm/100mm/200mm/300mm (other thicknesses can be customized)
Weight: 50mm (length * width * 120kg) / 100mm (length * width * 135kg) 200mm (length * width * 150kg)
Load: 800-5000kg

---
