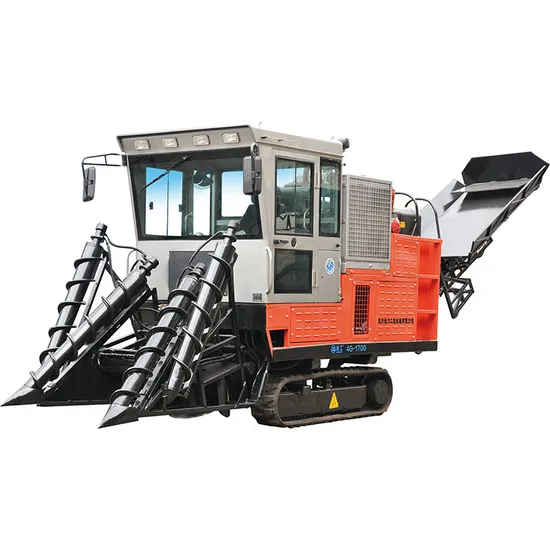

4gl-1 Whole Stalk Sugarcane Harvester

Product Description

Whole Stalk Sugarcane Harvester Welcome see working on job site

Range of Operation
Model	4GL-1
Structural Pattern	Crawler Tpye
Harvest Way	Whole bar type
Rows of harvest	1
Adapted Row Spacing	0.85-1.1 meter
Travel Driving Tpye	Hydraulic drive

Theoretical speed	5.5 km/ hrs
Machine Weight	5900 kg
Min. ground clearance	320 mm
Adjustable Range of cutting device	400 mm
Matched Power
Engine model	4M5LU23/ 0956E

Rated power	95.6
Rated rotation speed	2300

Dimensions ( length x width x height )
Operation condition	6300 x 1930 x 2930 mm
Travel position	6250 x 1930 x 2930

Parameter of Crawler Type
Spacing of crawler	1120 mm
The vertical horizonal distance between the first wheel center to tension wheel	1600 mm
Averaged ground pressure	6.2 kpa
Pitch distance	55 mm
Pitch Number	82 mm

Width of Crawler

300 mm

Cutting Device
Structural model	double disc cutting
Max. diameter of rotation	555 mm
Rotated speed	840 r/min
Drive type	hydraulic drive
Quantity	2
Blade	150 x 80 x 3
Quantity	4

Jinli Construction Machinery Co., Ltd. is located in Quanzhou, Fujian Province, a famous hometown of overseas Chinese in Southern Fujian Province. It was founded in 1997. Is a design and development, production and sales of technology-based companies. The company is equipped with all kinds of imported large-scale processing equipment, professional technical research and development team and excellent management team. The company has a complete set of product quality management system, and has many years of experience in R & D and manufacturing. The company insists on leading the development of enterprises with scientific and technological innovation, and maintains a good cooperative relationship with domestic key universities.
Whole Stalk Sugarcane Harvester Welcome see working on job site

---
