New High Quality 29m 37m 48m 52m Concrete Pump Truck with Ce

Product Description

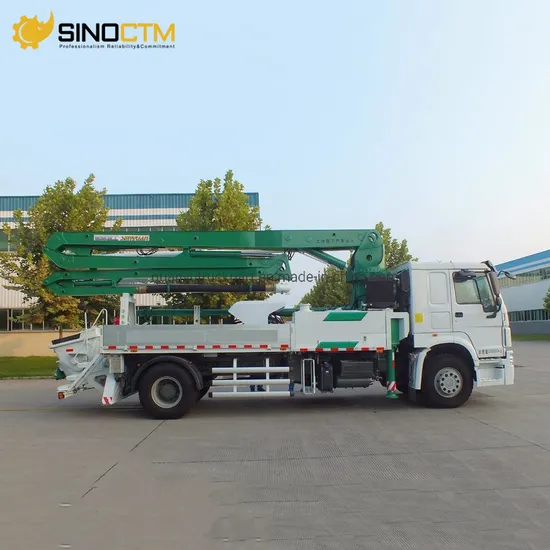

HB37K Truck-Mounted Concreted Boom Pumps
Truck mounted concrete pump is a new generation equipment.it is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.

SINOTRUK HOWO MOUNTED CONCRETE PUMP TRUCK SPECIFICATIONS 25m
Whole Vehicle Parameters	Overall Length	10950mm
	Overall Width	2550mm
	Overall Height	3850mm
	Kerb Mass	16000kg
Boom & Leg Parameters	Vertical Boom Height	23.58m
	Horizontal Boom Height	19.83m
	Vertical Boom Depth	10.4m
	Length /Turning Angle of Section 1	5600mm/90°
	Length /Turning Angle of Section 2	4600mm/180°
	Length /Turning Angle of Section 3	4600mm/248°
	Length /Turning Angle of Section 4	4160mm/260°
	Boom Folding Type	M-Type
	Turning Angle of Slewing Mechanism	±365°
	Span between Front Legs (mm)	5000mm
	Span between Rear Legs (mm)	4700mm
	Distance between Front and Rear Legs (mm)	5500mm
	Unfolding Mode of Legs	X-H
Pumping System Parameters	Concrete Distribution Valve Type	S
	Theoretical Concrete Pumping Capacity	60m3/h,
	Theoretical Pumping Pressure	8 Mpa
	Theoretical Pumping Times	19 times/in
	Inner Diameter of Concrete Cylinder	200,mm
	Cylinder Stroke	1400mm
	Hydraulic	Open-Type
	Diameter of Delivery Pipe	125mm
	Length of Outlet Hose (mm)	3000mm
	Diameter of Outlet Hose (mm)	125mm
Hydraulic Transmission System Parameters	Hydraulic System	open
	System Working Pressure	31.5 Mpa
	Brand of Main Hydraulic Oil Pump	Rexroth
	Model of Main Hydraulic Oil Pump	A11VLO130
	Displacement of Main Hydraulic Oil Pump	130L/RPM
	Brand of Main Hydraulic Valve	rexroth
	Brand of Oil Suction /Return Filter	made in China
	Brand of Boom Multiway Valve	made in China
	Brand of Boom Balance Valve	rexroth
	Brand of Boom Oil Pump	rexroth
	Brand of Leg Multiway Valve	Italy
	Oil Cylinder Hydraulic Seals	Parker
	Hydraulic Oil Tank Capacity	480L
	Cooling Mode of Hydraulic Oil	wind
	Main Oil Cylinder	made in China
	Brand of Transfer Case	STEIBEL
	Brand of Slewing Bearing	made in China
	Brand of Reducer	made in China
	Hose Connector	made in China
	Cleaning Water Pump	made in China
Electric Control System Parameters	Control Power Supply	24 V
	Control Module	SIEMENS
	Working Voltage	24 V
	Model of Intermediate Relay	LG
	Brand of Wireless Remote Control	made in China
Chassis Parameters	Chassis Model	ZZ1167M5617W
	Wheel Base	5600 mm
	Driving Form	4x2
	Engine Model	SINPTRUK WD615.87
	Engine Power	213 KW
	Emission Standard	(Euro II)
	Fuel Tank Capacity	400 L
	Max Traveling Speed	90 km/h
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
The manufacturer reserves the right of technical alteration /change for better improvement without prior notice

CONCRETE PUMP TRUCK PARAMETERS
22m, 25m, 28m truck-mounted concrete pumps,with Howo truck
diesel engine, power:125kw,
3 to 4 sections of the arm.
German Bosch Rexroth pump;
Max. out put 65cbm/h,
Manual and wireless remote control.
Economic FACTORY price. The adoption of the anti-tilting control technology improves intelligent level of the pump and enhances its safety performance;
Pump capacity: 65m3/h,self-controlled. High efficiency.
Main products
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Certifications Heavy Trucks on board for shipping
FAQ
1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
L/C: 30% payment advance, 70% L/C at sight.
3. Parts of famous brand can be adopted by your requirement.
4. Delivery time: Within15 workdays after receiving 30% deposit of T/T
