Pulp Pulping Machine D-Type Hydrapulper Pulper for Waste Paper Recycling

Product Description

Product Description

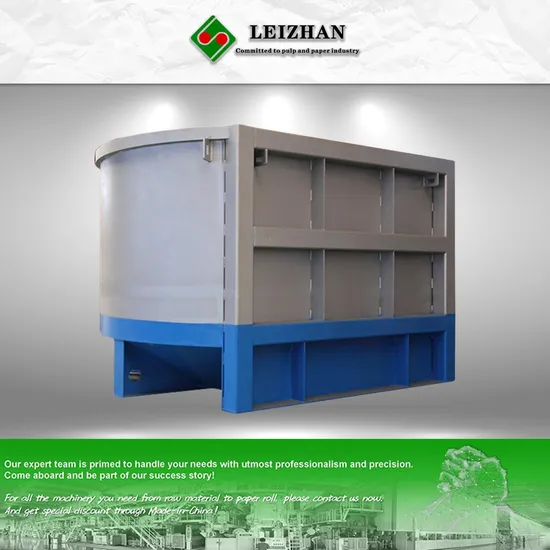

The D-type hydraulic pulper is mainly used to pulp all kinds of pulp board, broken, and waste paper. The main features are: the Vokes Rotor deviates from the center position, which makes the pulp contact with the rotor more quickly and frequently. Traditional hydraulic pulper produces unimpeded swirling flow, and the material moves from the feeding position to the central rotor following a helix line, while D-type hydra pulper changes this mode, which makes material contact with the rotor more quickly, shortening the time from feeding to pulping. Additionally, it can improve the production capacity without increasing power and volume.
Product Parameters
Advantage:
1.New energy saving rotor to improve the hydraulic circulation and pulping efficiency, less power consumption.2.D-type vat structure to change the stock flow, quicker and more frequent contacts between rotor and pulp, shorter pulping time, larger capacity.3.Adjustable clearance between rotor and screen plate, raised screen plate base. Heavy rejects sink to dump bin or sediment tank so as to reduce the friction to rotor and screen plate.

Model	ZDSD23	ZDSD24	ZDSD25	ZDSD26	ZDSD27	ZDSD28	ZDSD29	ZDSD30	ZDSD31	ZDSD32	ZDSD33	ZDSD34	ZDSD35	ZDSD36	ZDSD37
Nominal Volume: (m3)	5	10	15	20	25	30	35	40	50	60	70	85	90	120	140
Consistency: (%)	3-5
Capacity: (T/D)	20-60	60-100	90-120	140-180	180-230	230-280	260-330	300-380	370-450	450-550	550-650	650-800	650-800	800-1000	1000-1200
Motor Power: (kW)	75	110	160	185	220	280	315	355	450	560	710	800	900	1100	1250

Detailed Photos
Leizhan Production Base
