Gear Box Universal Horizontal Manual Gap Bed Lathe Machine (C6241)

Product Description

Product Description

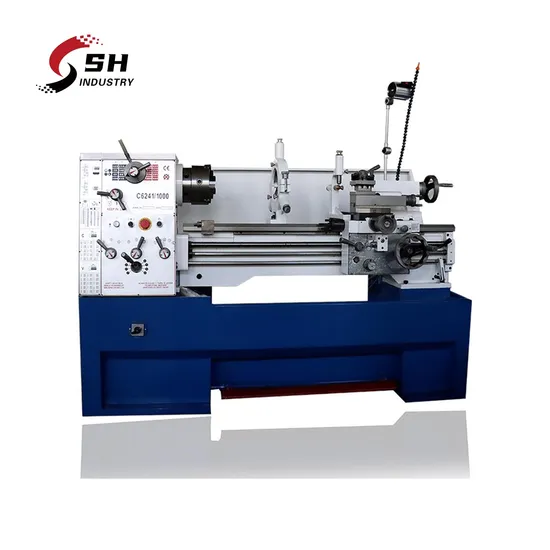

Gear Box Universal Horizontal Manual Gap Bed Lathe Machine (C6241)
We are the most professional in making gap bed lathe Product Parameters

SPECIFICATIONS	Specification	C6241
	Swing over bed	410mm(16")
	Swing over cross slide	220mm(8-13/16")
	Swing in gap diameter	640mm(25-1/8")
	Distance between centers	1000mm(40")/1500mm(60")/2000mm(80")
	Valid length of gap	165mm(6-1/2")
	Width of bed	300mm(11-13/16")
	Spindle nose	D1-6
	Spindle bore	58mm(2-1/4")
	Taper of spindle bore	No.6 Morse
	Range of spindle speed	12 changes, 25~1600r/min
	Compound rest travel	128mm(5")
	Cross slide travel	285mm(11-1/4")
	Max.section of tool	25×25mm(1"×1")
	Lead screw thread	6mm or 4T.P.I.
	Longitudinal feeds range	42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev)
	Cross feeds range	42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev)
	Threads metric pitches	41 kinds, 0.1~14mm
	Threads imperial pitches	60 kinds, 2~112T.P.I.
	Threads diametral pitches	50 kinds, 4~112DP
	Threads module pitches	34 kinds, 0.1~7MP
	Quill diameter	60mm(2-5/16")
	Quill travel	130mm(5")
	Quill taper	No.4 Morse
	Main motor power	5.5kW(7.5HP) 3PH
	Coolant pump power	0.1kW(1/8HP) 3PH
	Overall dimension(L×W×H)	220/275/325×108×134cm
	Packing size(L×W×H)	225/280/330×112×162cm
	Net weight	1580/1745/1900kg
	Gross weight	1845/2050/2230kg

This series of lathes is suitable for turning internal and external cylindrical surface, conical surface and other rotating surface, turning a variety of metric, imperial, modular and diameter pitch threads, and can be carried out
Drilling and pulling oil tanks and other work.
The bed is wider than the general lathe, with high stiffness, guideway surface by high-frequency quenching, durable wear.
The machine operation is convenient and centralized, and the slide plate is equipped with a fast moving mechanism. Using a single handle visualization operation, good amenity.
The structural stiffness and transmission stiffness of the machine tool are higher than that of the general lathe, and the power utilization rate is high, which is suitable for strong cutting.
Features :
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard Accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Dead center
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional Accessories
Steady Rest,Follow rest
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Drill chuck and holder
Face plate
Quick change tool post
Taper turning attachment
Detailed Photos
Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
