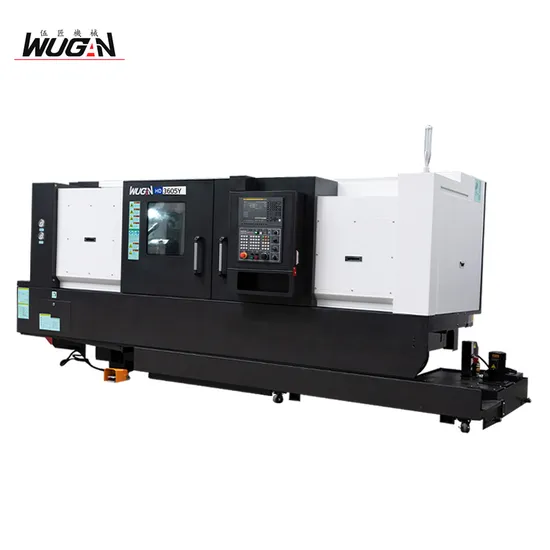

HD3605y-02 Reliable CNC Mill-Turn Machine with Vmc, CNC Gantry Machining, CNC Horizontal Machining

Product Description

-Robust box guideways designed for heavy-duty cutting, ensuring unmatched stability and precision.
-Innovative 30-degree slanted, one-piece bed structure engineered for extraordinary rigidity and durability.
-Advanced stabilized unit structure meticulously crafted to minimize thermal displacement, enhancing precision.
-Streamlined integrated processing achieved through synchronized control of both Main and Sub spindles (SY Type).
--Versatile multi-tasking operations enabled by the cutting-edge wedge-type Y-axis BMT turret.
Achieve exceptional efficiency with a rapid traverse rate of 30m/min along the Z-axis.
-Ergonomically designed for effortless access to chuck and tool, enhancing user convenience.

ITEM			UNIT	HD3605Y
CAPACITY	Swing Over the Bed		mm	940
	Swing Over the Carriage		mm	870
	Max.Turning Dia.		mm	300
	Max.Turning Length		mm	1280
	Bar Capacity	Main	mm	119
		Sub	mm	-
SPINDLE	Chuck Size	Main	inch	12"
		Sub	inch	-
	Spindle Bore	Main	mm	91
		Sub	mm	-
	Spindle Speed	Main	r/min	2,500
		Sub	r/min	-
	Motor(Max/Cont.)	Main	kw(HP)	18.5/15
		Sub	kw(HP)	-
	Torque(Max/Cont.)	Main	N·M	543/440
		Sub	N·M	-
	Spindle Type	Main	-	BELT
		Sub	-	-
	Spindle Nose		-	A2-11
			mm	-
	C-axis Indexing		deg	0.001
FEED	Travel	X/Y	mm	265/120{±60}
		Z/ZB	mm	1350
	Rapid Traverse Rate	X/Y	m/min(ipm)	24/10
		Z/ZB	m/min(ipm)	30
	Slide Type		-	BOX GUIDE
TURRET	No.of Tools		ea	12[24]
	Tool Size	O.D	mm	25[24Tool:20]
		I.D	mm	40
	Indexing Time		sec/step	0.2
	Y-Axis Type		-	WEDGE TYPE
LIVE TOOL	Milling Tool Speed		r/min	4,000
	Motor(Max/Cont.)		kw(HP)	4.5
	Torque(Max/Cont.)		N·M	76
	Collet Size		mm	∅20{ER32)
	Type		-	BMT65P
TAILSTOCK	Taper		-	MT#5
	Quill Dia.		mm	∅100
	Quill Travel		mm	120
	Travel		mm	1350
TANK CAPACITY	Coolant Tank		ℓ(gal)	225
	Lubricating Tank		ℓ(gal)	3
POWERSUPPLY	Electric Power Supply		kVA	35
	Thickness of Power Cable		mm²	Over 25
	Voltage		V/Hz	220/50
MACHINE	Floor Space(LxW)		mm	4,195x1,978
	Height		mm	1,857
	Weight		kg(lb)	7,400
CNC	Controller-		-	FANUC Oi Series

Detailed Photos
ALL-IN-ONE TYPE OF BED
Optimal Structural Analysis
Sophisticated structural analysis was meticulously applied to the machine's design, elevating the tool post body while reducing the machine's height. This ensures the bed's dynamic rigidity is maintained during heavy-duty operations.
Furthermore, the HD-SY Series features a 30-degree bed slope for more stable and precise machining.
Integrated Coolant Tank
Ingeniously designed structure with the coolant tank positioned at the bed front for optimal convenience. Efficient chip removal from the right side of the machine.
Box Guideway
The HD-SY Series features meticulously designed box guideways across all axes, offering superior travel ability and effectively offsetting vibrations during heavy-duty operations.
Sealed GIB Structure
The X-axis of the HD Series incorporates a sealed GIB structure to protect turcite from chip damage, ensuring durability and reliability.
Rapid Traverse Rate (X/Y/Z/ZB)
HD 3605Y/SY offers a rapid traverse rate of 24/10/30/24 m/min for efficient operations.
Travel (X/Y/Z/ZB)
HD 3605Y/SY X/Y/Z/ZB travel dimensions: 265/120/1350/1350 mm, facilitating versatile machining capabilities.
Mill Turret
The BMT turret employs a robust system with four bolts and a key, securely fastening the tool on the turret's mounting surface. This ensures exceptional rigidity and precision.
Mill Tool Holder
Enhanced machining capabilities with the introduction of straight and angular milling head tool holders. These can execute side machining and I.D. operations seamlessly.
BMT 65P (HD3605Y/SY)
Speed(rpm): Achieve up to 4000 rotations per minute for high-efficiency performance.
Collet size: ø20 (ER32) provides versatile tool compatibility.
Indexing time: An incredibly fast 0.2 seconds per step for streamlined operations.
Suzhou Wugan Intelligent Equipment Co., Ltd. excels in crafting high-performance CNC lathes and turning centers. By utilizing cutting-edge international lathe technology, combined with superior rigidity, precision, productivity, and an exquisite design, they offer unmatched cutting performance. To cater to the elevated demands of customers, the company presents a high-performance mill-turn combined model. This versatile machine performs turning, milling, and drilling seamlessly within a single unit, boosting output capacity and meeting diverse processing needs with unparalleled ease.

---
