Snap Ties

Product Details

Product Description

Product Description

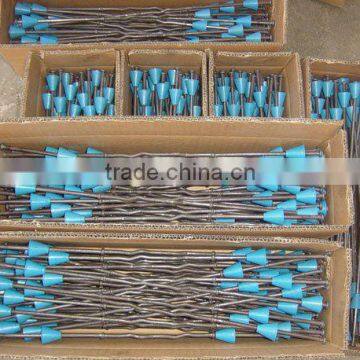

Snap Ties
Can be manufactured with round or ½” hex heads.,Standard breakback is 13/16”. Can be supplied with 1” x 1” cones or washers.
Safe working load is 2250lbs.
SWL provides a factor of safety of approximately 2 to 1

Short End	Ultimate	Lbs/Pc	Pcs/ Box
150mm	4500Lbs	0.2035	100
200mm	4500Lbs	0.2255	100
250mm	4500Lbs	0.2442	100
300mm	4500Lbs	0.2724	100
8"	4500Lbs	0.2257	100
10"	4500Lbs	0.2477	100
12"	4500Lbs	0.2697	100
14"	4500Lbs	0.2917	100
16"	4500Lbs	0.3137	100
18"	4500Lbs	0.3357	100
24"	4500Lbs	0.3577	100
Long End
150mm	4500Lbs	0.2827	100
200mm	4500Lbs	0.3047	100
250mm	4500Lbs	0.3263	100
300mm	4500Lbs	0.374	100
8"	4500Lbs	0.297	100
10"	4500Lbs	0.319	100
12"	4500Lbs	0.342	100
14"	4500Lbs	0.3641	100
16"	4500Lbs	0.3872	100
18"	4500Lbs	0.4092	100
24"	4500Lbs	0.4763	100

Snap Ties can be packaged as per customer's requirements.
Non Standard Sizes available.
This product requires proper engineering.
.

---
