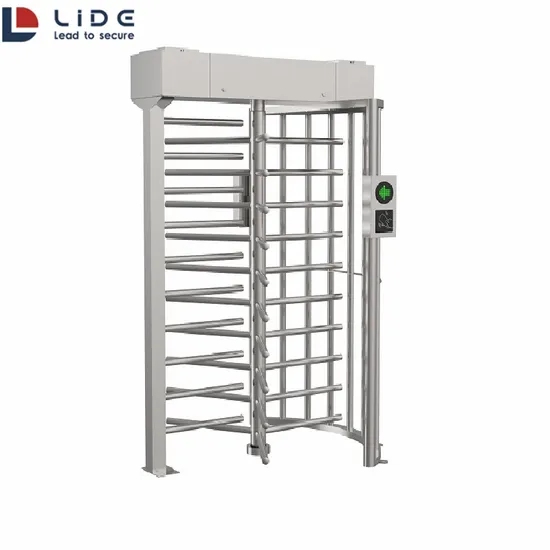

Mechanical RFID Time Attendance Full Height Turnstile Steel Revolving Gate for Stadium Access Management

Product Description

Full height turnstile: the turnstile is divided into 90 degrees and 120 degrees, mainly used for the access control entrance and exit, with safety, convenience, eliminate illegal access, and in the case of emergency quick control of free access and other characteristics. It is widely used in airports, stations, docks, scenic spots, parks, smart communities, prisons and other occasions that need to realize intelligent management of channels.

Moduel No.	LD-Q801
Size	1400*1200*2230mm( length*width* height)
Material	304 stainless steel, 38mm diameter tube, 1.2/1.5mm thickness
Unlocking time	1s
Traffic speed	≤30 persons/min
Channel width	≤600mm
Input voltage	220V, 50HZ
Drive voltage	24V
Ambient temperature	: -15~+55
Power	30W
Opening signal input	dry contact
Opening method	push button, face recognition, RFID card reader, finger print

Function:
1) the transmission system combining the unique manual rotating brake lever with the automatic reset, automatic locking and unlocking mechanism makes the running of the turnstile door safer, more reliable and more convenient.
2) the whole system runs smoothly with little noise.
3) there are a variety of working modes to choose from, including two-way card reading and limiting the current, or reading the card on one side, forbidden to travel in the other direction, reading the card on the other side, and free passage in the other direction, and the working mode of the brake can be set by the user through the built-in touch button. (select single channel or multiple channels according to the occasion)
4) it has the function of remote operation to drop the bar, so as to meet the special needs of users and fire safety requirements.
5) it has a unified and standard external electrical interface, which can be connected with various reading and writing devices to facilitate system integration, and can achieve remote control and management through the management computer.
6) it can automatically count the number of passers in the passing direction and has LED display.
7) it has a clear function of passage indication. It can indicate whether passage is allowed or forbidden to the passer in an intuitive LED or backlight.
8) with or without the memory function, and users can set it according to their own needs through the built-in touch button.
9) with automatic reset function. When the passer fails to pass within the specified time after reading the card, the system will automatically cancel the passer's access, and the limited access time can be set by the management.
Customized extension functions:
1. Count, alarm function, face recognition, fingerprint, qr code, LED screen display, touch screen, etc
2. The common height and width can be customized according to the occasion requirements to meet different customers' requirements for security and appearance
3. The chassis material is mainly 304 and A3 steel, other materials can also be customized
4. It can connect with remote control switch, access control system, consumption system, attendance system, electronic ticket system, biometric identification system, electrostatic tester, two-dimensional code authorization of residential visitors and residents and other devices and functions
After-sales services: All the products sold enjoy 18-month warranty and more spare parts are provided. After-sales service staff are online for 18 hours/day and all emails are replied within 1 hour. We offer life-time technology support on line, by emails, videos, phone calls, etc. We have engineers speaking English, Spanish and Arabic, etc. They are convenient to communicate with buyers or users directly. Engineers' on-site services are provided. Engineers are dispatched to customers' countries to handle various thorny problems.
FAQ:
1. How about your company's actual strength?
We are the professional manufacturer in turnstiles in China. We have more than 100 employees, a R&D group with 5 people, 1 HQ office and 3 branches. Factories and office buildings are 2000 square meters in total.
2. How about the quality of your products?
We are in the highest level of quality with the most competitive price. For example, we use international standard China-Japan Baoxin stainless steel 304 stainless steel, Taiwan Minwei electric supplier, belt import from German, 3M clue import from America etc.
3. How about the lead time?
Normally we have stock for the hot sale models of standard products. Generally standard products need 7-10 working days.The customized products need 15-20 working days.
4. How long is your warranty period?
18 months. Life time spare parts.
5. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.

---
