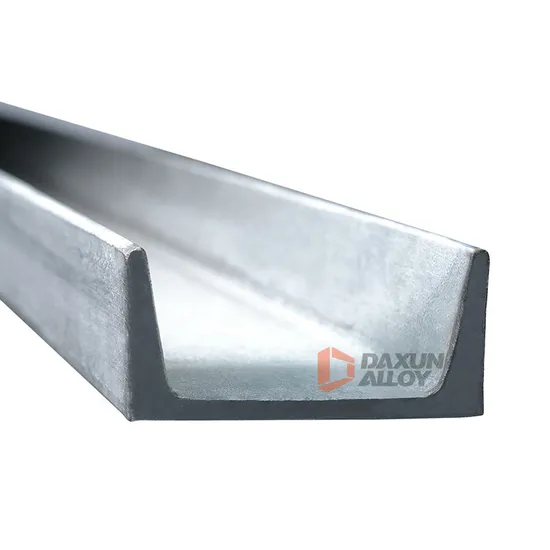

Stock Stainless Steel Channel Steel for Building Structures 304L 304 Stainless Steel Channel

Product Description

Product Description
Product Parameters

Product Parameters: Stainless Steel channel bar
Size	5#,6#,6.3#,8#,10#,12#,14#,16#,18#,20#,22#,25#etc.
	Please see the technical information below for detailed dimensions.
Surface	Pickling 8K, NO.1, NO.4,hairline, etc
length	6000mm or Customized
Grade	304 201 304L 310S 316L 321 904L 2205 2507 S32750 S32760 etc
Standards	ASTM A276, ASTM A484M, DIN 1028, EN10056, GB4227
Features	Anti-corrosion (the degree is susceptible to the alloys contained), heat-resistance, good cold and hot working properties, good toughness, good comprehensive performances and wide application.

Stainless Steel Channel Manufacturing ProcessDaxun stainless steel channels and C-channels are available in a variety of grades. We produce them by laser fusion and hot rolling, and are available in metric and imperial sizes. Daxun can provide custom sizes, shapes and grades upon request.Send us a message now!
A global leader in stainless steel channel fabrication services
Stainless steel channels are available in a variety of diameters; thicknesses, widths, heights and lengths all custom or available as standard. When determining which channel to use you must check the height and width of your application. If you are not sure what size you need, contact us and we will help you find it or customize it. Quality, delivery, inspectionDaxun also conducts several quality assurance tests. These tests include flattening test, pitting and resistance test, mechanical test, hardness test, material positive identification, expansion test, etc. All these tests ensure that the material is suitable for the required application.During the production process, we measure the diameter, thickness, and surface of the product. Our standard delivery time is 7-15 days, except for some special size products, our delivery time will increase to 20 days.
Our delivery time is strictly in accordance with the contract.Support customer third-party agencies to go to the factory for inspectionSupport free samples to customers for testingSupport on-site or video factory inspection

Channel steel cross-sectional dimensions, cross-sectional area and theoretical weight table
model	size						Sectional area	Theoretical weight
	h	b	d	t	r	r 1
	(mm)						(cm2)	(kg/m)
5	50	37	4.5	7	7	3.5	6.925	5.44
6.3	63	40	4.8	7.5	7.5	3.8	8.446	6.63
6.5	65	40	4.3	7.5	7.5	3.8	8.292	6.51
8	80	43	5	8	8	4	10.24	8.04
10	100	48	5.3	8.5	8.5	4.25	12.74	10
12	120	53	5.5	9	9	4.5	15.36	12.1
12.6	126	53	5.5	9	9	4.5	15.69	12.3
14a	140	58	6	9.5	9.5	4.8	18.51	14.5
14b		60	8				21.31	16.7
16a	160	63	6.5	10	10	5	21.95	17.2
16b		65	8.5				25.15	19.8
18a	180	68	7	10.5	10.5	5.2	25.69	20.2
18b		70	9				29.29	23

Company Profile
Certifications
FAQQ1: What products can you offer?
A: We can offer you general steel types like 310S, 316L,304.304L.201,904L, 316H, 316,316L 300and
400 series, and duplex stainless steel like 2205, 2304,2101,2507,etc. 904L, 800H, 600H high-nickel alloy.
Q2. Can you produce the products according to my own drawings?
Yes, we can produce the products according to your drawings that will be most satisfy you.
Q3. How does your factory do regarding quality control?
Quality is a priority. We always attach great importance to quality controlling from the beginning to end.
Q4. Can I request to change the form of packaging and transportation?
Yes, We can change the form of the packaging and transportation according to your request,
but you have to bear their own costs incurred during this period and the spreads.
Q5. How does your factory do regarding quality control?
Quality is a priority. We always attach great importance to quality controlling from the beginning to end.
Q6. How long is the delivery time?
A: 7~20 working days after confirming the payment.
If the order is urgent, we will push our workshop finish in advance.
Q7. What is your Payment?
A: 100% T/T advance, Western Union (For Small Order)
B: 30% T/T and balance 70% before the shipment
C: 100% Irrevocable LC at sight (For Big Order)
Q8: Can you make DDQ ( Deep Drawing Quality)?
A: Yes, we can. Our material can be used for stainless steel pots, stainless steel sinks, stainless steel bowls etc. U can tell us your usage, and we will adjust the mechanical propertise to meet your requirement.
Q9: How to get a sample?
A: FREE samples are available for your checking and testing.If you require for a small piece,we can afford courier cost,it depends.
Q10:Which country have you exported to?
A:Until now,we have exported stainless steel material to following countries: Vietnam,Thailand,Turkey,Russia,Maroc,Korea,India,Pakistan,UAE,Ukraine and so on.
Q11: How to visit your company?
A:By flight to Guangzhou Baiyun International airport,then we will pick you up.

---
