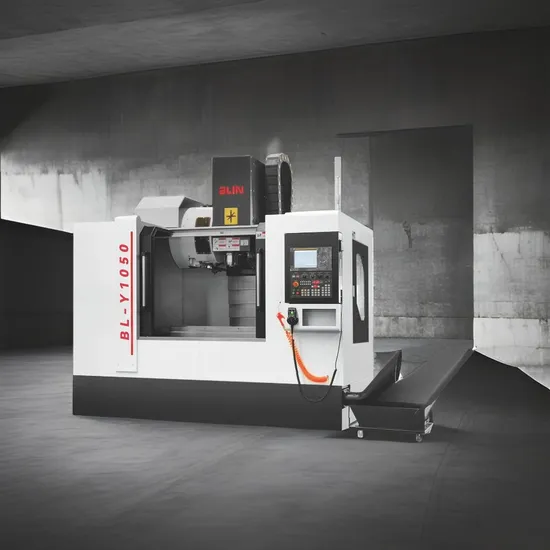

German Technology China 4 5 Axis CNC Vertical Machining Center Milling Machine (BL-Y1050)

Product Description

German Technology China 4 5 Axis CNC Vertical Machining Center Milling Machine (BL-Y1050)
- Designed by German engineer
- Whole production process accord to TAIWAN standard
- Most parts adopt GERMAN/JAPAN/TAIWAN brand
- High speed, high precision, long using lifespan
- Adopt HT300 high class cast iron,after aging treatment and FEA analysis
- Bridge shape column, high rigidity, high stability
- Counterweight system install rails, so spindle head's cutting moving or up-down moving is more fast and stable, and suppress the vibration to ensure accuracy.
- Use 24T Arm type ATC, adopt CAM driving, fast and stable tool changing, tool selection for bi-way as random.
- 3 axes use C3 class precision ball screw, match up nut preloading and ball screw pre-stretching,pre-eliminate backlash and temperature rising, ensure stable positioning and repeatable positioning precision
Details:

Item	Specification	Unit	BL-Y1050
Worktable	Table size	mm	1200×460
	T slot(NO./width/gap)	mm	5/18/90
	Table max. loading	kg	500
Travel	X/Y/Z axes travel	mm	1000/500/550
Spindle	Distance from spindle nose to table surface	mm	150-700
	Distance from spindle center to column face	mm	520
	Spindle type	/	BT40/Φ150
	Spindle motor	kw	7.5/11; 11/15(opt.)
	Spindle speed	rpm	8000(option:10000 belt-drive/12000 direct-drive)
Feeding axes	X/Y/Z axes linear guideway width	mm	35/35/35(BALL type)
	X/Y/Z axes rapid moving speed	m/min	36/36/24
	X/Y/Z axes ball screw dia./pitch	mm	40/12
	X/Y/Z axes motor torque	Nm	12/12/22
Precision	Positioning precision	mm	±0.005
	Repeatable positioning precision	mm	±0.003
Tool magazine	Tool magazine type	/	24T Arm type
	Max. tool weight	kg	8
	Max. tool length	mm	300
	Max. tool dia.(fully loaded)	mm	78
	Max. tool dia.(no adjacent)	mm	120
	Tool changing time	/	Tool to tool: 2s
Others	Overall Size	mm	2900×2200×2500
	Weight	kg	5500

Main parts brand:

Item	Brand
Bearing	JAPAN-NSK
Linear guideway	TAIWAN-HIWIN/PMI
Ball screw	TAIWAN-HIWIN/PMI
Spindle unit	TAIWAN-ROYAL/KENTURN
Tool magazine	TAIWAN-OKADA
Booster cylinder	TAIWAN-HAO CHENG
Pnuematic parts	TAIWAN-AIRTAC
Lubrication pump	TAIWAN-ISHAN
Electric parts	FRANCE-SCHNEIDER

Standard configuration:
-SIEMENS 828D CNC Controller
-24T Arm type tool magazine
Optional configuration:
-FANUC 0I MF CNC controller
-Chip conveyor
-Coolant through spindle
-Tool setting probe
-4th axes
-5th axes
