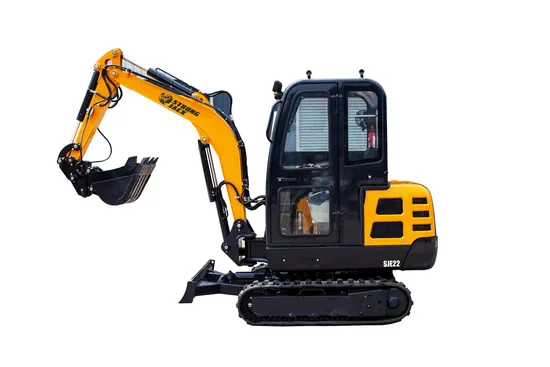

Small Mini Excavator 2ton Price of Hydraulic Excavator Garden Excavator

Product Description

Brief Indruction
The crawler excavator is a compact excavator ,which matched laidong tier III engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with hydraulic broken pipeline system.the machine can changed track from rubber to steel and cabin from open to closed.ensure it can work in different working environments and conditions.
Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.
Basic specifications

ENGINE
Emission Standard	Tier 3/ Stage III
Make /Model	LAIDONG/3TE30
Power /Rotation speed	22.1kw(30HP)@2300rpm
Number of cylinder	3
TRACK SYSTEM
Maximum Travel speed	2.5km/h
Width of track shoe(Rubber &steel track)	230mm
Number of track shoe per side(steel track only)	38pcs
Number of upper roller per side	0
Number of bottom roller per side	4
PERFORMANCE PARAMETER
Standard Bucket capacity	0.1m³
Swing speed	12rpm
Maximum Grade ability	30°
Maximum Bucket digging force	15.3KN
Maximum Arm digging force	10.5KN
Hydraulic system pressure	18Mpa
Machine weight	2200kg
Boom length	1850mm
Arm length	1000mm
MACHINE SIZE
Overall dimension (L*W*H)	4170mm*1300mm*2280mm
Axle base(Track length on ground)	1230mm
Track gauge	1070mm
Minimum Ground clearance	230mm
Swing radius at tail	1180mm
WORKING RANGE
Maximum Digging height	3700mm
Maximum Dumping height	2290mm
Maximum Digging depth	2450mm
Maximum Vertical digging depth	2160mm
Maximum Digging radius	4370mm
Minimum swing radius	2020mm
Maximum Lifting height of blade	240mm
Maximum Cutting depth of blade	310mm
Boom swing angle(Left/Right)	70°/50°

Diagrammatic drawing
CONDITIONS:
QUOTATION TERMS: Based on FOB Qingdao or Tianjin port. 30 days validity since issuing date. PACKING DETAILS:
2 pcs in 20GP container. 4 pcs in 40GP container. Bulk cargo or RO-RO Nude DELIVERY TERMS:
Generally, 20 days after receiving deposit/confirmation; Specific dates shall be confirmed
when order.
PAYMENT TERMS:
By T/T: 30% as deposit and the balance paid after finishing production before shipment ACCESSOORIES:
Tools box, operator's manual and a list of spare parts.
WARRANTY:
Generally, 6 months or 1000 hours since first receiving the goods, whichever first
ORIGINAL: China
OPTIONS: Steel track Closed (full seal)cabin OPTIONAL ATTACHMENTS: Breaker Log grapple Auger

---
