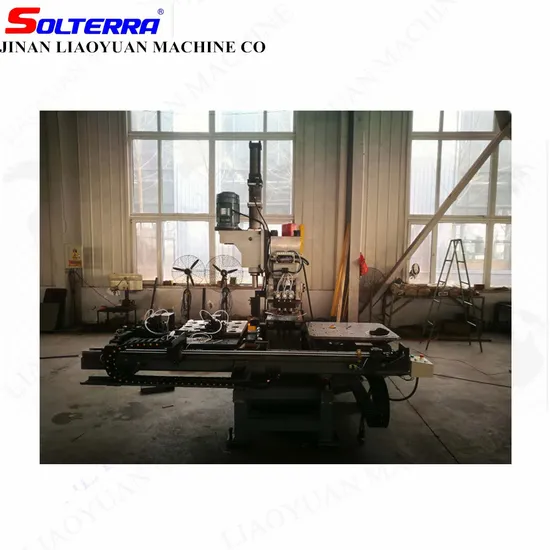

Hydraulic CNC Plate Punching Machine Functional Plate Drilling Machine Durable

Product Description

Hydraulic CNC Plate Punching Machine Functional Plate Drilling Machine Durable
1) C shape framework features great rigidity and spacious working area.
2)There are four working stations,Stations can change automatically. The clamp system is suitable for workpiece with different thicknesses. There is stop locater at zero position. Workpiece is supported by working table with rolling balls.
3)X and Y axis are driven by servo motor and ball screws. The punching position is controlled by bi-axis CNC controlling system. The Processing data can be input into the controlling system and the processing can be done automatically .And the data inputted can be used for next times.
MAIN FEATURES: CHINA SUPPLIER CNC PLATE DRILLING PUNCHING MARKING MACHINE
1. Integrated machine with mechanical, electrical, and hydraulic system. PLC control and servo motor drive.
2. Modular assembling for main functional parts, easy maintenance, self-diagnostic function. 3. Punching, Marking and drilling operations on one plate with less labor force and steady precision.
4. For programming, either input punching diameter, position and quantity of workpiece or directly share the date source of design department by the local network.
Product Parameters

Model	CPD103	CPD123
Punching force(kN)	1000	1200
Marking Force(kN)	800	1000
Thickness of Punching/drilling(mm)	6~20/25(Q345/Q235)	6~25(Q420)
Max Dimension of workpiece(mm)	1500×800	1500×800
Max Diameter of punching hole(mm)	25.5(Q235)	25.5(Q420)
Number of die-stations(piece)	4	4
Max Diameter of drilling(mm)	50	50
Max Thickness of drilling(mm)	40	40
Feeding speed of Main Axis(mm/min)	25-280(Stepless Adjustment)	25-280(Stepless Adjustment)
Speeds of drilling spindle(r/min)	0-560	0-560
Total Power(kW)	≈25	≈25
Overall Dimension(m)	3.0×2.5×1.9	3.0×2.5×1.9
Net Weight(kg)	Appr.6500	Appr.8500

Certifications
Packaging & Shipping
Company Profile
JINAN LIAOYUAN MACHINE COMPANY INFORMATION
Jinan Liaoyuan Machine Co is located in Jinan, Shandong province of China. Our company is a one of the world leader Manufacturers in CNC machine tools. Jinan Liaoyuan has focused on top-quality CNC machine products for over 20 years in China. We started as a small operation, but now have become one of the leading suppliers in the CNC machine industry in Shandong. We are a manufacturer and trader specialized in the research, development and production of all kinds of CNC machines, such as: CNC Angle Steel Punching machine, CNC Angle Steel drilling machine, CNC Plate Drilling Cutting machines, CNC Beam Drilling Marking Beveling machines, CNC Band Saw Cutting Machine and all kinds of CNC machine center and so on. Jinan Liaoyuan Machine provides turkey solutions and the perfect service to satisfy your production needs.
JINAN LIAOYUAN CNC HISTORY * Founding period (1991-2008)
* Continuous growth (2008-2013)
* Innovation expansion (2013-2017)
* JINAN LIAOYUAN MACHINE today
Our products:
The machines manufactured by JINAN LIAOYUAN are being used in the fields from steel structure to angle towers, metal construction, pipe, pressure vessels, ship construction, bridge construction, wind-energy, heat exchanger industry fields, and they are also offered for usage in many other different fields.
Our Valued customers:
Our Advantages


After Sales Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine,
* 24 Hours on services Phone, email and in person support training how to use the machine.
* View our Factory. * Stay in touch with the customers even after
* Electrical & mechanical technical support the deal. never ignore their calls.
* Parts ordering * Engineers available to service machinery
overseas.
FAQ
Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not a trading company,We are the top Machine Manufacturer,Which involves Raw materail casting,Machine body processing,Machine assembling,Painting,Machine quality Inspecting and etc.
Q 2. What is the minimum quantity for order?
A2: Normally One Set. and We will give some discounts if you can buy one complete set of machines.
Q3. Do you have stock products ready to deliver?
A 3. We have many machines in stock, So We can guarantee the fast delivery time
Q4. How do you deliver the finished products?
A 4, For FCL, We delivered by Sea
For LCL, We deliver by Sea and by Plane for only urgent requirement
For Spare Parts, We delivered by Courier, TNT, FEDEX, DHL, UPS, EMS, Etc.

---
