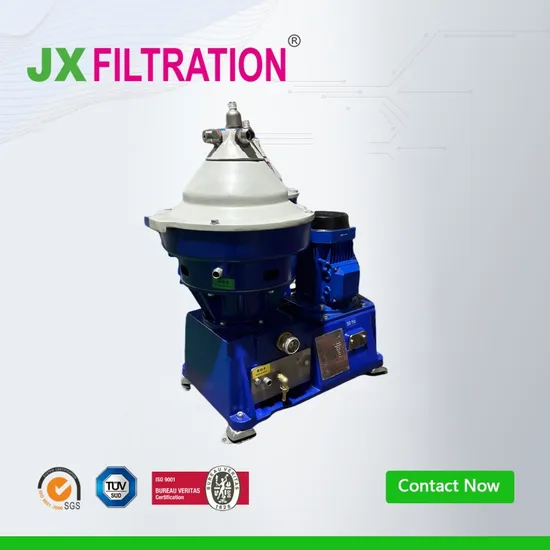

3 Phase Stainless Steel Multi Disc Centrifuge Wastewater Treatment Equipment Solid Liquid Separator

Product Description

Product Description Product Introduction
Disc centrifuge is a mechanical filter based on the principle of centrifugal sedimentation. It is widely used for the continuous separation of liquids with density difference and solid liquid mixture. The disc centrifuge features are high rotating speed, stable operation, fully closed design, low noise, and
superior separation efficiency.
Disc centrifuge is composed of inlet and outlet device, drum, vertical or horizontal shafts, housing, brake, motor, speed detector, etc. A centripetal
pump discharges the material after separation. With a high output pressure (0-0.5mpa), the material will be directly delivered to the downstream
equipment.
Features
1. All parts contacting with fluid are made by high standard stainless steel ( food level).
2.The drum of the JX disc centrifuge is precisely tested with dynamic balance. Large spiral gears are used in the transmission system to guarantee
stable operation, overload-proof, small vibration, safety running and convenient operation.
3. The bearings are from famous Swedish brand, thoroughly ensuring the operation precision.
4. Disc centrifuge can also achieve program operation with PLC control.

Working principle
When the raw liquid was fed into the high-speed rotating drum, it enters the disc stack along the channel. With the effect of strong centrifugal force, raw liquid with different densities forms three dynamic concentric rings. Small amounts of solid particles with most significant density keep moving outward and pile up on the drum, forming the outmost layer. Heavy liquid with bigger viscosity is thrown to the lower surface of the disc and then slip out of the disc area to create the middle layer. Light liquid with smaller density keeps moving toward the drum center and forms the innermost layer. Finally, the components of each layer will be discharged from their channels, respectively.
Detailed Photos
Product Parameters

Model	Capacity (L/H)	Drum Diameter (mm)	Drum Speed (rpm)	Motor Power (KW)	Weight (Kg)	Sizes (L*W*H) (mm)
JXDS270	500-1000	270	9600	4	420	900*1200*1100
JXDS360	1000-2000	360	7000	7.5/11	810	1100*1500*1400
JXDS470	2000-6000	470	6700	15/18.5	1600	1400*1800*1700
JXDS500	4000-8000	500	6700	18.5	2000	1643*1200*1770

Certifications
Company Profile JXFILTRATION® JX Filtration (China) Co., Ltd is a professional manufacturer of Wedge Wire Screen (Wedge Wire Screening), Automatic Backwash Filter, Rotary Drum Screen, Bag Filter Housing, Volute Dewatering Press. With highly mature production lines, we can provide high-quality and inexpensive products in large quantities.Because of the difference in raw material price, factory wages and other considerations, we have set up three factories in major cities of China to ensure our product quality and price advantage.
Our Belief: Your trust is priceless!
Our Advantages Professional Services FAQ Question 1: Are you manufacturer?
Yes, we are the manufacturer since year 2014.
Question 2: Can you provide OEM service?
Yes, we have more than 10 years of OEM experience and provide this service. Question 3: Can you provide sample? Free or chargeable? Yes, we can provide free sample for filter elements, all filter housings are chargeable.
Question 4: Does the product support customization?
Products can be customized base on our current mould.
Question 5: What is the payment terms?
50% advance,balance 50% before shipment(FOB terms).

---
