Single and Double Groove Sealing Machine for Construction Poplar Core Melamine Board Plywood Home Furniture Colors Melamine Faced Cheap Particle Board

Product Description

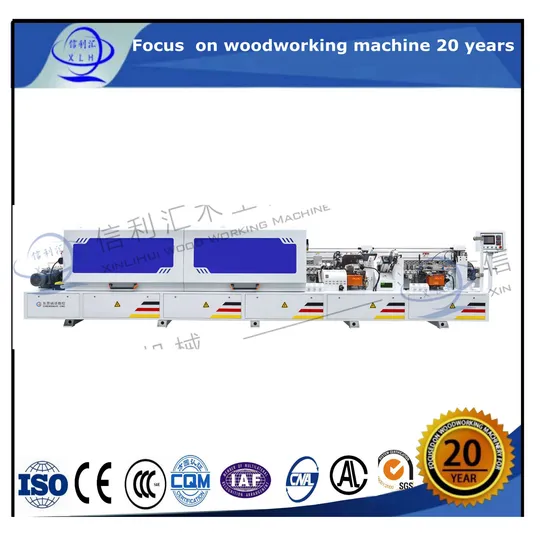

MFZ450DJ with pre milling and Slotting woodworking automatic edge banding machine Apply to MDF, Block Board, Solid Wood Board, Particleboard, Polymer Door Plates, Plywood Etc,Straight Line Edging And Trimming.
Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!
1, Product Show
2, Specification

Panel thickness	10-60mm
Enging thickness	0.4-3mm
Min.Width of panel	≥80mm
Min. Length of panel	≥160mm
Max.size of tape higher than panel(each side )	2mm
Panel feeding speed	≤20mm/min(variable speed)
Pneumatic power	0.7Mpa
Power	380V 3N/PE 50Hz Can be customzied
Panel feeding motor	1.5KW
Glue axis motor	0.75kw
Edge-cutting motor	3kw*2 200Hz 12000r/min
Rough triming motor	1.1kw*2 200Hz 12000r/min
Fine trimming motor	0.5kw*2 200Hz 12000r/min
Buffing motor	0.25kw*2 50Hz 2800r/min
Heating power of glue tank	2.5KW
Secondary heating power	0.12KW
Lnstalled power	9.57KW
Total current	19.13A
Glue temperature fo readging (reference)	180-200ºC
Overall dimensions	6585*970*1520mm
Weight	2600kg

Another new model work for 45 degree cutting bevel
here are some pictures show:
5, Features
1:Flexible, advantages of high performance, easy debugging, convenient in maintenance and easy to operate.
2: high quality electric components and transmitting component make machines fuction more steady.
3: Full-close safety shield,more human operation.
4.energy-saving,enduring.
5.Stable performance.
8, Company Information
Qingdao Xinlihui Machinery Co., Ltd is one of the large-scale woodworking machinery manufacturer in China. The company is located in Wangtai town.
Our company is a comprehensive enterprise which is specialized in research and development, design, manufacturing, sale and service. With advanced production equipment and professional technical staff of research and development, and management. Which is formed a unique management model and the standardization of production process.
The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill machine, Pur wrapping machine, paper sticking machine, vacuum laminating machine, edge banding machine, computer engraving machine and the other series and over sixty standards. With the scientific management, unique technology, and innovative products to meet customer demands. Our products get a very high reputation from our customers at home and abroad. Our products are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic. It creates a famous brand called "XINLIHUI" and our products sell well both at home and abroad. It is the most trusted brand to our customers.
We would like to work a new win-win development with the insight colleagues and we welcome all the new and old friends to visit our company and crest a brilliant tomorrow together.

---
