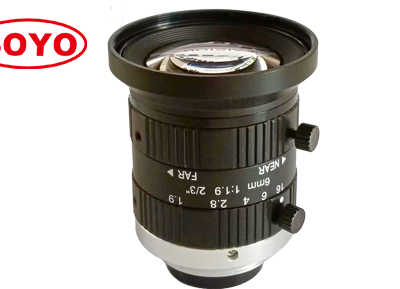

6mm 2/3" 5MP Megapixel Lenses Machine Vision FA <-1.77% Low Distortion F1.9 Industrial Recognition Factory Automation Positioning Measurement AI Sort Camera Lens C Mount China Optics
High resolution : 5.0 megapixel cover all 4K & 1080P
Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
Compact size : Out dimension 39mm, length 39mm
Low distortion : <-1.77% low distortion use machine vision ITS
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.
Model
| SMV0619XF-5M
|
Format
| 2/3”
|
Resolution
| 5.0 Megapixel
|
Focal Length
| 6mm
|
Aperture(Close)
| F1.9-C Manual iris
|
Angle of View (°)
| 2/3"
| 87.2*71.5*61.4
|
M.O.D
| 0.1m
|
Distortion
| -1.77%
|
Relative Illumination
| F1.9 Y=5.5 40% / F4.0 y=5.5 89%
|
C.R.A
| <11.65°
|
Filter screw
| M37*P0.5mm
|
B.F.L
| 8.15~8.63mm
|
Size
| Φ39*39.43mm
|
Mount
| C
|
Weight
| 150g
|
(cctv lenses, megapixel lenses, varifocal lenses,camera lenses,machine vision lenses, motorized zoom lenses, fisheye lenses, FA lenses, industrial lenses, M12 lenses, board lenses, color sorting lenses, MTV lenses, mono-focal lenses,fixed lenses,lentz, non-distortion lenses,video conference lenses, intercom lenses, pinhole lenses, telecentric lenses, macro lenes,manual iris lenses,відэаназірання лінзы, мегапіксэльныя аб'ектывы,soczewki cctv, obiektywy megapikselowe,CCTV-Objektive, Megapixel-Objektive,линзы cctv, мегапиксельные линзы,lentilles cctv, lentilles mégapixels,CCTV 렌즈, 메가 픽셀 렌즈,kanta cctv, kanta megapixel,CCTVレンズ、メガピクセルレンズ,เลนส์ cctv, เลนส์ล้านพิกเซล,cctv lensler, megapiksel lensler,עדשות cctv, φακοί CCTV, φακοί megapixel,cctv lencsék, megapixeles lencsék,obiettivi cctv,obiettivi megapixel,lensa cctv,lensa megapiksel,ống kính cctv,ống kính megapixel )
