Basic Info.
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Maximum Lifting Height
12m
Certification
CE, ISO9001:2000, GS
Capacity
0.75 T 1.5 T 3 T 6 T
Hmin
3 M 6 M 9 M 12 M or More
Chain
G80 Black Lifting Chain
Colour
Orange or as Your Requirement
Specification
CE ISO9001 GS
Production Capacity
1000PCS/Week
Packaging & Delivery
Package Size
36.00cm * 15.00cm * 16.00cm
Package Gross Weight
8.500kg
Product Description

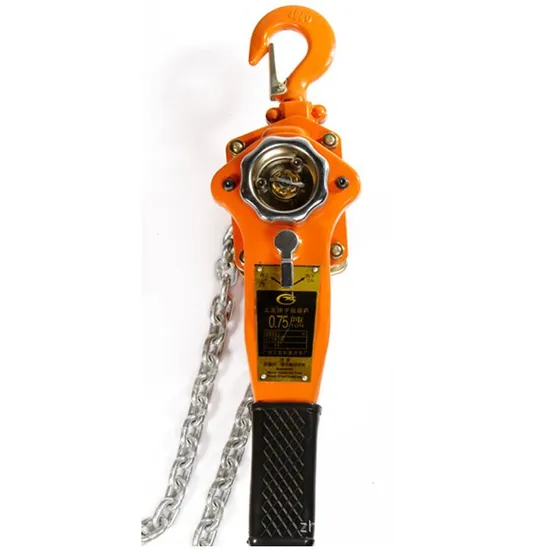

2024 lever chain hoist 1.5ton 3ton 6ton 3m with G80 lifting chain
Product Description
1. Lever block is a kind of highly efficient and versatile hand operate hoisting appliance.It is particularly used in thenarrow places,the open air and overhead places for pulling and stretching work at any angle.
2. The lever block is using in safety,reliable and durable.
3. The lever block is excellent performance,easy operation and convenience maintenance.
4. The lever block is small volume,weight light and portable in size.
5. The lever block is high efficiency ,fast lifting and light hand pull.
6. There are advanced structure and attractive appearance of lever chain block.
Product Parameters
HS-VA Lever Block Specifications
|
Model
| HS-VA2.5
| HS-VA5
| HS-VA7.5
| HS-VA10
| HS-VA15
| HS-VA20
| HS-VA30
| HS-VA60
|
Rated Load(T)
| 0.25
| 0.5
| 0.75
| 1
| 1.5
| 2
| 3
| 6
|
Test Load(T)
| 0.375
| 0.75
| 1.125
| 1.5
| 2.25
| 3
| 4.5
| 9
|
Standard Lift(m)
| 1
| 1.5
| 1.5
| 1.5
| 1.5
| 1.5
| 1.5
| 1.5
|
Min.Distance Between Two Hooks(mm)
| 205
| 260
| 295
| 295
| 335
| 385
| 450
| 542
|
Efforts Required Capacity(N)
| 217
| 303
| 140
| 185
| 234
| 251
| 363
| 370
|
No. of Load Chains
| 1
| 1
| 1
| 1
| 1
| 1
| 1
| 2
|
Dia. Of Load Chain(mm)
| 4
| 5
| 6
| 6.3
| 7.1
| 8
| 9
| 9
|
N.W. (kgs)
| 1.85
| 3.5
| 7
| 7
| 11
| 15.5
| 20
| 28V
|
Detailed Photos
