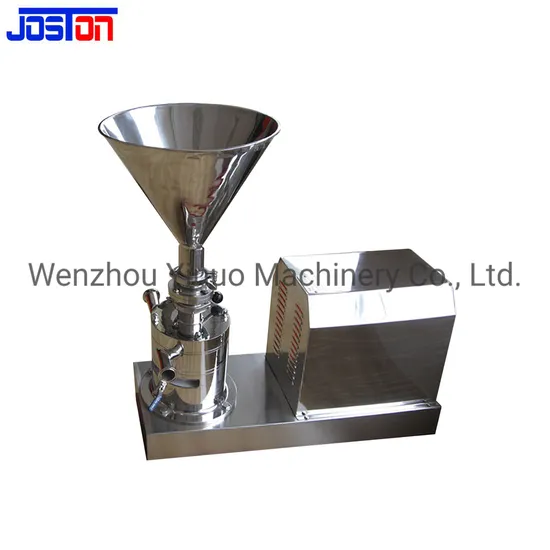

Stainless Steel SS316L Mill Almond Nut Grain Peanut Butter Soybean Food Mill Colloidal Mill

Product Description

working principle:
The working principle of colloid mill is shear, grinding and high-speed stirring. Grinding depends on the relative movement of two tooth surfaces. One of the base rotates at high speed and the other is stationary, so that the materials passing between the tooth surfaces are subjected to great shear force and friction force. At the same time, under the action of complex forces such as high-frequency vibration and high-speed vortex, the materials can be effectively dispersed, emulsified, crushed and homogenized.
Structural features:
The crushing chamber is equipped with three grinding areas, the first level is the coarse grinding area, the second level is the fine grinding area, and the third level is the ultra-fine grinding area.
According to different material properties and processing requirements, a variety of grinding teeth are designed, which can
effectively achieve the required ultra-fine grinding effect at one time.
Application features:
Food industry: (Aloe Vera, pollen broken wall, pineapple, sesame, fruit tea, ice cream, moon cake stuffing, butter, jam, juice,
soy, soybean paste, bean paste, peanut milk, protein milk, soy milk, dairy products, malt milk, essence, various beverages,
emulsified chicken bone paste, emulsified pig skin and other animal skins, etc.)
Chemical industry: (paint, pigment, dye, coating, lubricating oil, grease, diesel oil, petroleum catalyst, emulsified asphalt,
adhesive, detergent, plastic, explosive, FRP, leather, emulsified explosive, etc.).
Daily chemicals: (toothpaste, detergent, shampoo, shoe polish, cosmetics, bath essence, soap, balm, etc.).
Pharmaceutical and chemical industry: (syrup, nutrient solution, Chinese patent medicine, paste medicine, biological products, cod liver oil, pollen, royal jelly, vaccine, various ointments, various oral liquids, injections, intravenous drops, pancreatin preparations, emulsions, animal husbandry drugs, etc.).
Other chemical industries: (plastic industry, textile industry, paper industry, biochemical industry, environmental protection and energy saving, coal flotation agent, nano materials, large and medium-sized universities, scientific research institutions, etc.).

model			L65	L80	L180F	L100	L100F	L140	L140F
Emulsify μm			≤2	≤2		≤2		≤2
Adjust range mm			1-0.01	1-0.01		1-0.01		1-0.01
Capacity t/h			0.01-1	0.5-1.5		0.5-3		0.5-4
Motor	Power kw		2.2	3.0	4.0	5.5		7.5	11
	Voltage V		380	380		380		380
	Speed		2900	2900		2900		290
Mill surface diameter:mm			Φ50	Φ80		Φ100		Φ140
Outlet diameter(inch)			Φ3/4	Φ11/2		Φ1/2	Φ1	Φ11/2
Inlet diameter(inch)			Φ11/2"	Φ2		Φ2	Φ11/2	Φ21/2
Cooling water pipe diameter(inch)			Φ1/4	Φ1/4		Φ1/4		Φ1/4
dimension		L:mm	300	370	750	560	715	600	870
		W:mm	300	370	450	420	380	450	440
		H:mm	730	860	860	950	650	1000	850
Weight:kg			80	130	200	180	240	200	400

SERVICEWe have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)FAQ1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.

---
