in Stock Intel 4300u 4250u 5200u Itx Motherboards, Motherboards, 6 COM Motherboards

Product Description

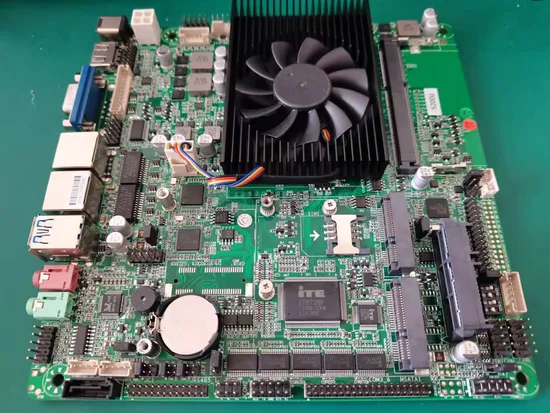

Intel Haswell I3/I5 POS Motherboard / Thin ITX Small Motherboard With VGA/HDMI/LVDS For Small PC Computer / Digital Signage
Intel®Haswell-U Intel®Core i3-5005U /Intel®Core i3-5010U/ Intel®Core i5-5257U/I5-4300U 1*SO-DIMM Memory Slot,support single-channel1600/1333MHz DDR3L/1.35V memory,up to 8GB 1* VGA,1*HDMI,1*LVDS (Default, eDP as option)
1* Realtek RTL8111H LAN(2*LAN optional)
DC 12V Power Supply

Processor

Intel®Core i3-5005U

Intel®Core i3-5010U

Core i5-5257U

Intel®Core i5-4300U

Dual core 2.0GHz

Dual Core 2.1GHz

Dual Core 2.7GHz (Up to 3.1GHz)

Dual Core 1.9GHz (Up to 2.9GHz)

Compatible with Intel Celeoron,Pentium,Core®I3/I5/I7 Haswell/Broadwell-U series processor

Memory

1*SO-DIMM memory slot,support single channel 1600/1333MHz DDR3L/1.35V memory,up to 8GB

Display

Integrated Intel® HD Graphics 4400

1* VGA,1*HDMI,1*LVDS (Default,eDP as optional)

Support VGA,HDMI,LVDS Or eDP Synchronous / asynchronous display

Ethernet Ports

1* Realtek RTL8111H Gigabit Ethernet Port(2x LAN as option),Support Wake-On-LAN/ PXE

Storage

1* 2.5" SATA3.0

1* SATA3.0

1* mSATA3.0(Long card)

Audio

Onboard ALC662 6-channel High Fidelity Audio Controller,Support MIC/Line-out,amplifier

Extension Slot

1* Mini-PCIe(Half/Long card supported),Support WIFI/4G module

1* Mini-PCIe(Half-Card),Support WIFI module

Back I/O

1* HDMI

1* VGA (COM1 optional)

2* USB 2.0 (RJ45 optional)

2* USB3.0

1* RJ-45 Gigabit Ethernet Port(LAN2 can custom by changed from USB2.0)

1* Line out(Green),1* MIC(Red)

1* 12V DC Power Input

Inner I/O

1* JHDMI 2*8Pin(option)

1* JVGA 1*12Pin(Same signal with DB15)

1* LVDS 2*15pin,Support dual-channel 24bit(Default,eDP as option)

1*Screen Backlight Power Interface 1*6pin

1* eDP 2*15pin(Optional,LVDS as default)

4* USB 2.0 2*5Pin(6xUSB2.0 when 2*LAN supported)

1* Front Audio Interface 2*5pin

1* Amplifier 1*4pin

2* COM (6*COM optional,COM2 support RS485/422,COM3-5 support RS485,The 9th Pin of COM1/2 can charged)

1* LPT

1* PS2 1*6Pin

1* Hard Disk Power Interface

1* 4pin ATX Power Interface

1* Front Panel Switch Button and Indicator LED 2*5Pin

Fan Interface

1*4pin CPU fan port,1*4pin system fan interface

GPIO

Support 4-way Input/Output GPIO

BIOS

64Mb Flash ROM

Watchdog

Support Hardware Reset Function (L256,0~255S)

OS

Windows 7/Windows 10/Linux

Power Type

Adopt DC 12V Power Supply

Working Temp.

60ºC~-10ºC

Storage Temp.

-20ºC~70ºC

Working Humidity

5%-95% relative humidity,No-condensing

Dimmension

170mm x 170mm

Package

1*COM

Order Information

#

Item No.

CPU

Core

Frequency

Memory

HDMI

VGA

LVDS

EDP

LAN

USB

PS2

LPT

COM/485

POWER

1

POS-45X_I51L VER1.0 (4030U)

I3-4030U

2

1.9G

DDR3L

1

1

1

/

1

8

1

1

2 / 1

12V

2

POS-45X_I51L VER1.0 (5257U)

I5-5257U

2

2.7G

DDR3L

1

1

1

/

1

8

1

1

2 / 1

12V

3

POS-45X_I52L VER1.0 (4030U)

I3-4030U

2

1.9G

DDR3L

1

1

1

/

2

8

1

1

6 / 2

12V

4

POS-45X_I52L VER1.0 (5257U)

I5-5257U

2

2.7G

DDR3L

1

1

1

/

2

8

1

1

6 / 2

12V

Notes: Supply Box enclosure .
FAQ 1. Do you provide OEM/ODM service?
A: Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.

2. What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
3. What payment method do you use?
A: T/T,PayPal.
4. What is the lead time of your product?
A: 3 days for sample, 15 working days for large quantity.

5. How does your factory do related quality control?
A: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
6. What is the warranty time of your product?
A: 1 year warranty for non-artificial damage, for the 2nd to 3rd year we can repair it free, but will charge for the parts that needed to change.
7. Does your motherboard can work 24*7 hours?
Our low power consumption industrial boards have passed very strict tests, there is no problem to work 24*7 hours.
8. Are you a factory or trading company?
A: R&O is a leading R&D and manufacturing technology-innovation enterprise specialized in Industrial Motherboards and embedded products industry.
Our products include: mini-itx motherboard,all-in-one motherboard, 3.5'' industrial motherboard, firewall motherboard, NVR&industrial motherboard, mini PC , HTPC, all-in-one PC, embedded PC, vehicle computers, cloud terminal, networking security, OPS mini PC, NAS storage server, etc.
Computer, OEM / ODM available.

9 If we come to China, can you arrange the visiting to your factory?
A: We warmly welcome and look forward to your visiting to our factory at any time.
