Anti Corrosion ASA PVC Synthetic Resin Roof Tile Machine UPVC PP PE Recycle Glazed Tile Roof Production Line Equipment Machinery

Product Description

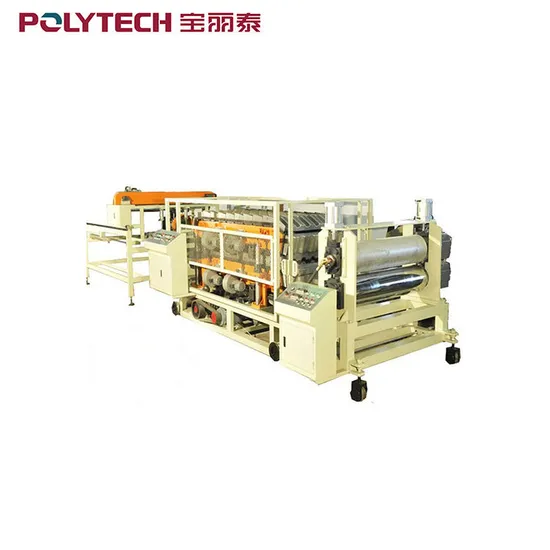

Anti Corrosion ASA PVC Synthetic Resin Roof Tiles Equipment Machinery





Raw material & Final product:

Raw material & formulation	Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid , Compound stabilizer ,ACR, paraffin. Surface layer: ASA granule
Description final product & Output	Two layers PVC+ASA Co-extrusion Glazed tile; Output:300-400kg/h(Depending on CaCO3 proportion)
Final product	Main tile:1set Two layers PVC+ASA Roofing tile; Width:720/880 /1040mm,Thickness: 2~3.0mm; Wave distance:160mm; Wave height:28/30mm; Wave length:220/250mm Ridge tile:4sets

Machine list:

No.	Machine	Qty.
1	Screw loader for extruder	1set	Glazed tile extrusion line Ridge tile forming machine
2	Conical twin-screw extruder(PVC)	1set
3	Vacuum loader and drying hopper	1set
4	Single screw extruder(ASA)	1set
5	Extrusion mould and distributor	1set
6	Embossing roller	1set
7	Temperature controller	1set
8	Glazed-tile forming machine	1set
9	Cutter	1set
10	Stacker	1set
11	Ridge tile Oven	1set
12	Ridge tile Forming machine and ridge tile mould	4set
13	Screw loader for Mixer	1set	Auxiliary equipment
14	Mixer unit	1set
15	Crusher	1set
16	Pulverizer	1set

1,Q:How to solve the problem about material leakage of high mixer quickly?
A:Replace the seal gasket or check the cylinder distance whether it is enough .
2,Q:why the low-mixer is always burned?
A:The mixture exceeds the rated capacity, causing the motor to overload.
3,Q:How to adjust the space of the screw?
A:Log in Polytech official website
Company Profile

, authorized to download the video tutorial.
4,Q:How to solve the the ASA coating problem?
A:Many reasons ,such as temperature, formulation, start-up speed etc.
5,Q:Why the material Burnt?
A:Many reasons, such as high heating temperature, heating preservation time is too long.
6, Q:Why the ASA is covering on the bottom?
A:Many reasons ,such as temperature, formulation, start-up speed does not match.
7, Q:Asymmetrical ASA2/4 area covering?
A:Many reasons ,such as temperature, formulation, start-up speed does not match.
8,Q:How to adjust the dislocation of glazed tile module?
A:By adjusting tooth on the dynamic column to achieve the right location of module.
9, Q:Why Shaping mould two side speed is not synchronization?
A:Two side shaping module is not synchronized.
10,Q:Why the Cutter machine does not move?
A:Replace the sliding bearing seat under rack or moving cylinder.

---
