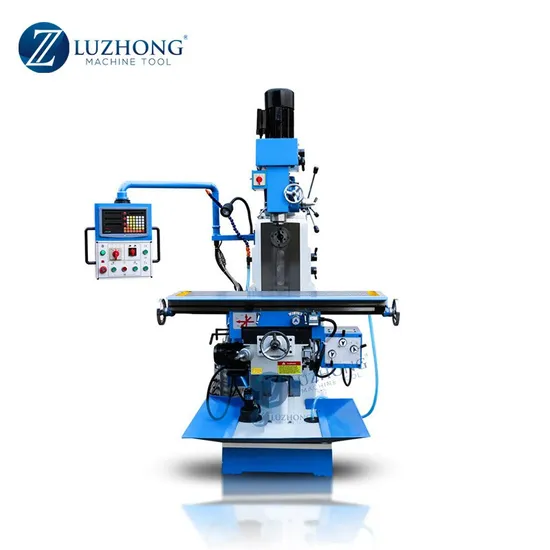

Vertical Knee type Manual ZX6350A Metal Universal Milling And Drilling Machine

Product Description

Cheap Vertical Manual ZX6350A Metal Universal Milling And Drilling Machine
Product Description
The main performance characteristics:
1. Vertical and horizontal milling head
2.X /Y/Z axis auto feed
3.vertical spindle manual feed and micro feed
4.Guide way with sparking quenching
Product Parameters

Product main technical parameters:

SPECIFICATIONS	Units	ZX6350A
Max. drilling dia.	mm	50
Max. end milling dia.	mm	100
Max. vertical milling dia.	mm	25
Max.boring dia.	mm	120
Max. tapping dia.	mm	M16
Distance between spindle nose and table surface	mm	80-460
Spindle taper	-	MT4( V) IS040( H)
Spindle speed range	rpm	40-1400( V) 40-1300(H)
Spindle travel	mm	120
Table size	mm	1200*280 0pt.l500*280
Table travel	mm	680*280 0pt.l000*280
Worktable auto feed	mm/min	X/Y:22-555 Z:300
Main motor power	kw	1.5/2.2( V)3( H)
Machine weight	kg	1500
Overall dimension	mm	1450*1400*2350

Detailed Photos


Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
