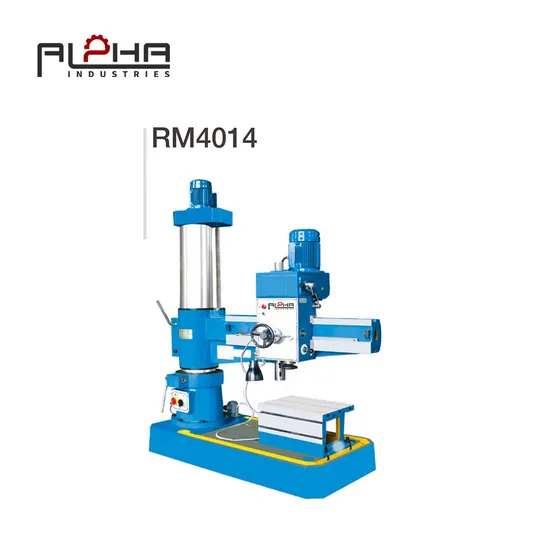

High Precision Productive RM4011-RM4014-RM5016 Radial Drilling Machine

Product Description

Product Description
Fabricado En China Metal Universal RM4011-RM4014-RM5016 RADIAL DRILLING MACHINE Product Parameters

Model NO.	RM4011-RM4014-RM5016	Precision	High Precision
Automatic Grade	/	Condition	New
Certification	CE, ISO 9001	Trademark	Alpha industries
Origin	China	Production Capacity	100 Sets/Year

Model No.	Unit	RM4011	RM4014	RM5016
max drilling capacity	mm	40	40	50
distance between spindle surface to work table	mm	260~1050	260~1150	260~1150
distance between spindle center to column center	mm	360~1100	360~1400	360~1600
spindle travel	mm	200	200	220
spindle taper		MT4	MT4	MT5
spindle speed range	r.p.m	75,130,240,380,660,1200	75,130,240,380,660,1200	78,135,240,350,590,1100
spindle steps	steps	6	6	6
spindle feed range	r.p.m	0.10~0.25	0.10~0.25	0.10-0.56
spindle feed steps	steps	3	3	6
spindle rotary angel		360	360	360
main motor power	kW	2.2	2.2	4
up &down motor power	kW	0.75	1.5	1.5
packing size	mm	1500×705×2200	1800×810×2300	2170×950×2450
G.W.	kg	1600	2200	2800

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
