Leabon Automatic Four Side Planer Moulder Price for Sale

Product Description

LEABON Automatic Four Side Planer Moulder Price For Sale
Product Description

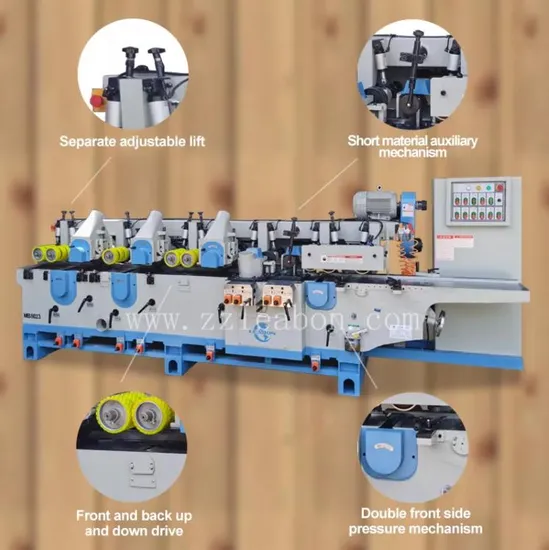

Features of Four Side Wood Planer Machine
1 .Working table equipped with driving motor to ensure smooth material feeding
2 .Brand new designed control panel with digital display
3 .Short material roller,ensure short materials can be conveying smoothly
4 . Universal joint feeding,precise,durable and requires minimum maintenance
Main Data

Specification and Model		MB5018E-J	MB5023E-J
Machine parameters	Working width	20-180 mm	20-230mm
	Feeding speed	5-20 m/min	5-20 m/min
	Thickness of the saw	10-80 mm	10-80 mm
	Plane shaft speed	6000 r/min	6000 r/min
	Bleed pressure	0.6MPa	0.6MPa
	Saw shaft speed	4000 r/min	4000 r/min
	Feeding wheel diameter	φ140×φ35×50mm	φ140×φ35×50mm
Motor power	Lower shaft	4kw	4kw
	Right vertical shaft	4kw	4kw
	Left vertical shaft	4kw	5.5kw
	Armshaft	5.5kw	7.5kw
	Mandrel	15kw	18.5kw
	Material feeding	4kw	4kw
	Horizontal lifting	0.75kw	0.75kw
	Total power	37.25kw	44.25kw

Detail Images
Final Products of 4 Planer Moulder:
We can make different shapes 4 planer moulder for making wooden lines, as long as you provide the drawing of the product, we will customize the blade for you
Other type product:

1.Portable Band Saw	2.Woodworking Timber Dryer	3.Electronic WoodBlock Cutting Saw	4.Wooden Pallet Nailer Machine

Appliance
Company Profile
Pls Click "Send" Ask for More Informaiton and EXW Price of Four Side Wood Planer Machine

---
