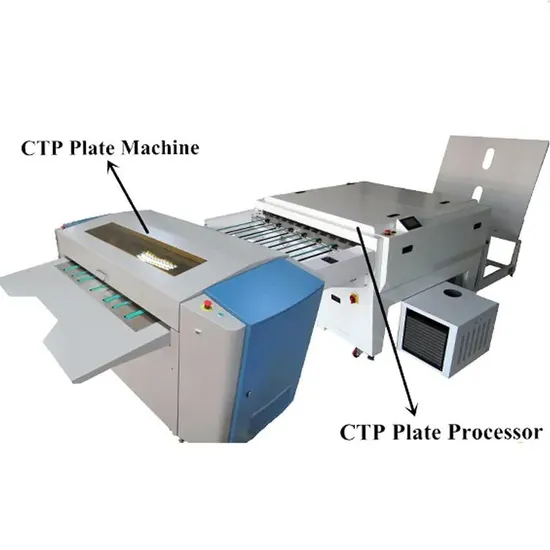

CTP Plate Making Machine Plate Manufacturing Machinery Offset CTP Plates Printing Machine

Product Description

Product Description CTP Plate Making Machine Plate Manufacturing Machinery Offset Ctp Plates Printing Machine:

CTP series printing machine is our company through the introduction, digestion and absorption of foreign advanced technology.
The new design of the new generation of the device, features as follows:
A processing speed digitization, but stepless speed adjustment.
B submerged development, development time and development temperature adjustable.
C development has a circulating filtration system.
D microprocessor control system control time, solution, oven temperature.
E glue automatic circulation system, can control the glue or not.
F automatic cleaning and gluing roller, easy maintenance.
G province water installation, need not to consume water all the way.
H looks beautiful, easy to operate
Product Parameters CTP Plate Making Machine Plate Manufacturing Machinery Offset Ctp Plates Printing Machine:

Model	OR-CTP 01
Max plate size	670*645mm
Image size	660*630mm
Quantity of light	32ch
Resolution	2540dpi
Plate thickness	0.13-2.5mm
Type of laser	High Power Fiber Laser Source
Applied Plate	Digital Flexo resln plate,Thermal CTP Plate
Data Format	1-Btt TIFF
Output speed	Thermal PS plate more than 20P/h(670*645mm)
Dimensions	1060*1600*1100mm
Weight	760KG
Power	AC220V 30A 50Hz/60Hz
Environment	18-26 degree.Relative humidity, non condensing

CTP Plate Processor:

Model	OR-CTP Processor
The maximum plate size	670*645mm
The plate thickness	0.15-0.4mm
Time adjustment range	10-50s
Working speed	400-1380mm/min
Brush speed	40-120r/min
Temperature control range	18 to 40 ºC
Drying temperature control range	30 to 60 ºC
The adjustment range of the liquid	0-999ml 0-999ml
The capacity of the developing medicine tank	about 40L
Wash water	10-15l/min
Volume (length x width x height)	2380 x 1300 x 1050mm
Weight	300 kg
Power supply	220V 50HZ
Maximum power	3500w
