Woodworking Automatic Machinery Steel Worktable Manual PVC Edgebander Edge Banding Machine

Product Description

Products Description

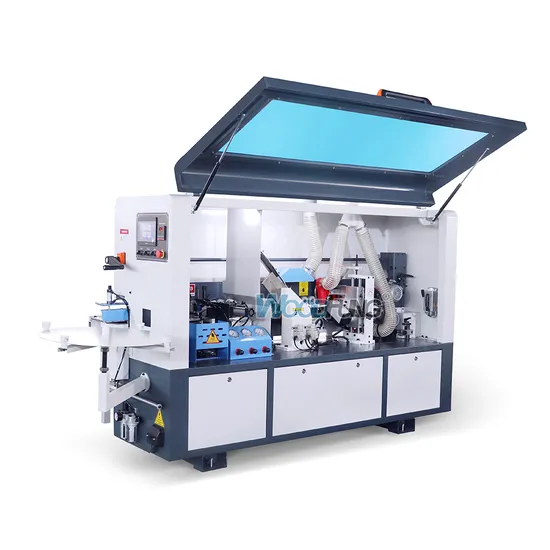

Edge Bander Woodfung WF60E new type short length 2.15m full automatic edge banding woodworking machinery
WF60E full automatic edge banding machine corner rounding Woodworking Machinery
This machine is specially designed and exclusive for foreign market by us,which is multifunction but favourable price.It is used
for MDF,wooden board and shaving board.It can complete the processes of feeding workpiece,feeding coiled material,edging,end
cutting,fine trimming,scraping and buffing.It can achieve the level as same as foreign machines and the price is favourable.It is
especially suitable for the factory producing board .
Main Material brand:DELTA Touch Screen/CHINT Electronic/DELTA PLC/solenoid valve AirTac/CSK guide/EASUN Cylinder

Model	WF60E	WF360A	WF360B	WF360C	WF360YC	WF360D	WF360F
Motor power	6.5KW	7.4KW	9.4KW	8.5KW	11KW	19KW	15KW
Panel width	≥60mm	≥60mm	≥60mm	≥60mm	≥60mm	≥60mm	≥60mm
Panel thickness	10~60mm	10~60mm	10~60mm	10~60mm	10~60mm	10~60mm	10~60mm
Edge band thickness	0.4~3.0mm	0.4~3.0mm	0.4~3.0mm	0.4~3.0mm	0.4~3.0mm	0.4~3.0mm	0.4~3.0mm
Edge band width	12~65mm	12~65mm	12~65mm	12~65mm	12~65mm	12~65mm	12~65mm
Feed speed	18m/min	0~13m/min	0~13m/min	0~13m/min	0~13m/min	0~13m/min	0~13m/min
Working pressure	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa	0.7Mpa
size(LxWxH) cm	230*75 *145	370*93 *160	450*93 *160	418*93 *160	500*93 *160	590*93 *160	610*93 *160
WF60E	gluing,end cutting,fine trimming,and buffing,
WF360A	gluing,end cutting,fine trimming,scrapping and buffing
WF360B	gluing,end cutting,rough trimming,fine trimming,scrapping and buffing
WF360C	gluing,end cutting,fine trimming,scrapping,vertical grooving,horizontal grooving and buffing
WF360YC	pre-milling,gluing,end cutting,rough trimming,fine trimming,scrapping and buffing
WF360F	pre-milling,gluing,end cutting,fine trimming,corner rounding,scrapping, and buffing
WF360D	gluing,end cutting,rough trimming,fine trimming,corner rounding,scrapping and buffing

---
