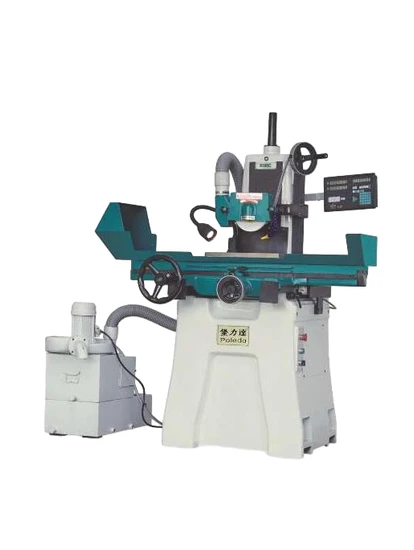

M618 Surface Grinding Machine Vertical Surface Grinding Machine for Sale

Product Description

Product Description
Surface grinding machine features:
High efficiency: surface grinder spindle speed is high, processing speed is fast, can improve the processing efficiency.
Long service life: surface grinding machine mechanical parts have been carefully designed and manufactured has a long service life.
Low maintenance cost: surface grinding machine maintenance is simple, low maintenance cost.
Simple operation: surface grinding machine is simple to operate, can reduce the training time and cost of operators.
Safe and reliable: surface grinding machine has high safety, can ensure the safety of the operator.
Good structural rigidity: surface grinding machine is usually composed of bed, column, workbench, grinding wheel and grinding wheel frame, the overall structure is mostly cast iron structure, because cast iron has good shock resistance, wear resistance and thermal stability, can ensure the rigidity and stability of the surface grinding machine.
These performance characteristics make the surface grinding machine widely used in industrial production, suitable for grinding a variety of surfaces and complex forming surfaces, suitable for grinding without the need of mechanical feed.
Product Parameters
Mechanical Properties
Machine Structure: Crafted from high-grade cast iron, the main castings of our machine undergo meticulous annealing treatment to eradicate internal stresses. This process ensures exceptional precision, robust rigidity, and prolonged machine lifespan. Slide Way: Our machine features a double V slide way, both left-right and front-back, with wear-resistant resin TI URCITE-B and precision shovel flower. This guarantees not only smooth and wear-resistant sliding but also makes it impeccably suitable for forming and grinding tasks.
Cylindrical Straight Spindle: The machine is equipped with a P4 ultra-precision angular roller bearing. This design ensures low noise and no vibration, delivering substantial torque even at high speeds. It is perfectly suited for heavy cutting as well as various forming grinding operations.
Automatic Lubrication System: Our machine features a state-of-the-art circulating automatic lubrication system. The lubricating oil commences its cycle as soon as the main spindle starts, providing forced lubrication to each screw and slide. This significantly reduces the wear degree of the slide. Additionally, an oil mirror installed above the column allows for real-time monitoring of the lubrication condition.

Product name	Surface grinding machine
Product model	M618
Product technical parameters
1 Table size		150*450MM(6*18'')
2 Maximum grinding length		475MM(18-3/4'')
3 Maximum grinding width		185MM(6-1/3'')
4 Distance between spindle center and table surface		350-400MM(13.8-15.7'')
5 Standard disk size		150*350MM
6 Left and right feed/manual stroke		485MM(19'')
7 Front and rear feed/manual stroke		180MM(7'')
8 Hand wheel feed (per turn)		5MM(0.2'')
9 Hand wheel feed		0.02MM(0.001'')
10 Lift feed/hand wheel feed per scale		0.005MM(0.0002'')
11 Grinding wheel size (diameter * width * aperture)		180*16*31.75MM(7*2/3*1-1/4'')
12 Spindle speed (50/60HZ)		2800RPM
13 Spindle motor		1.5HP
14 Weight (approximate)		850kgs
15Machine size (L * W * H)		1350*1050*1850MM
Grinding machine configuration	Accessories name and specification	Quantity
Standard parts for machine tools	1,Grinding wheel and flange	1
	2,Wheel removal wrench	1
	3,Hexagonal wrench	1
	4,Leveling screws and foot pads	1
	5,Grinder guide oil	1
	6,Toolbox and adjustment tools	1
	7,Hanging rings	1
	8,Grinding wheel	1
Special parts for machine tools	9,Grating electronic ruler	1
	10,Permanent detail disk	1

Detailed Photos
Our Advantages
Packaging & Shipping
Certifications
FAQ
1.What is the MOQ for your production?
A. The Minimum Order Quantity (MOQ) depends on your specific requirements for color, logo, and other customizations. For some standard items, which we have in stock, the MOQ is just 1 set.
2.How do you control the quality of the products?
A. Quality is our top priority. We have stringent quality control measures in place to ensure that our standards are consistently met. Our principle is to providecustomers with superior quality, competitive pricing, and excellent service.
3.What are the main products of your company?
A: We specialize in the manufacture of various machines, including CNC Machines, Lathes, Milling Machines, Grinding Machines, Vertical Machining Centers, Drilling Machines, Radial Drilling Machines, Sawing Machines, and many more.
4. What are your trade terms?
A: We accept a range of trade terms including Ex-works (EXW), FOB (Free On Board),
CFR (Cost and Freight),
and CIF (Cost, Insurance, and Freight)..What are your payment terms?
A: Our payment terms are: T/T (Telegraphic Transfer), with 30% initial payment upon order placement and the remaining 70% balance before shipment.
6.What CNC systems do you use?
A: We offer a variety of CNC systems including FANUC, SIEMENS, MITSUBISHI, SYNTEC, and HCN. The choice depends on your preference.
7.How can I choose the most suitable machines?
A: Please send us the drawings and details of your products and their applications. Our experts will recommend the most suitable machines for your needs.
8.What kind of packaging do you offer?
A. We typically use plywood cases to ensure that all goods are delivered in perfect condition. Customized packaging is also available upon request.
9.Can your plant do OEM?
A:Yes, we can provide both OEM and ODM services to meet any customer requirements.
10.How about the warranty?
A: Our products come with a one-year warranty after delivery. Additionally, we offer lifetime service support for our machines even beyond the warranty period.

---
