US$3,000.00-3,300.00
|
1 set
(MOQ)
|
Basic Info.
Application
Industry, School, Hospital, Lab
Vessel Jacket Capacity
About 16.0L
Heating Transfer Area of Condenser
About 0.43 M2
Feeding Funnel Capacity
2000ml
Glassware Material
Borosilicate 3.3
Working Temp. Range
-80~250ºC
Pressure Range
-0.1~0.0MPa
Speed Adjustment
Speed Adjustment
Power Supply
110-240V,50/60Hz
Transport Package
Standard Exporting Wooden Case
Product Description

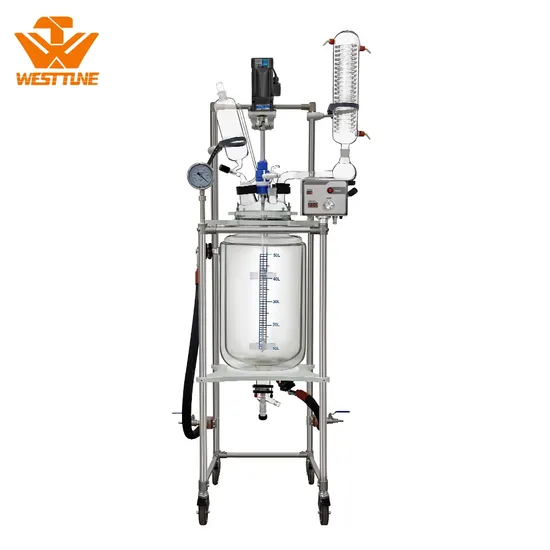

WT-R 50L Laboratory Chemical Single Jacketed Glass Crystallization Reactor Tank
1. High borosilicate glass has good physical and chemical properties.
2. Wide working temperature range: -80ºC to 200ºC.
3. It can work under normal pressure and negative pressure, its vacuum degree can reach 0.1MPa.
4. The vessel can bear the pressure range from -0.1MPa to 0MPa.
5. PTFE and FV rubber material cock or discharge valve; Sealing together with PTFE covered O ring.
6. Designed with vacuum gauge and temperature display unit.
| Items | Specifications |
| Vessel capacity (L) | 50 |
| Vessel jacket capacity (L) | about 16.0 |
| Heating transfer area of condenser(m²) | about 0.43 |
| Feeding funnel capacity(ml) | 2000 |
| Lid cover | stirrer port | 50# flange |
| temp. sensor port | 35# flange |
| condenser port | 50# ball-ground port |
| Liquid feeding port | 34# standard ground port |
| Feeding funnel port | 40# standard ground port |
| Solid feeding port | 80# flange |
| Glassware material | borosilicate 3.3 |
| Frame | SUS304 |
| Working temp. range (ºC) | -80~250 |
| Pressure range(mPa) | -0.1~0.0 |
| Jacket pressure tolerance(mPa) | ≤+0.03 |
| Motor power(W) | 140 |
| Speed adjustment | frequency control |
| Speed range(rpm) | 50~400 |
| Temp. sensor type | PT100 |
| Temp. accuracy(ºC) | ±0.1 |
| Thermo insulation hose connector | 1/2 male screw |
| Seal material | PTFE |
| Drain port height(mm) | about 450 |
| Stirrer type | Paddle, SUS304 with PTFE coated |
| Power supply | 110-240V~,50/60Hz |
| Operating temp. (ºC) | 5~35 |
| Ambient humidity (%) | ≤ 65 |
| Machine size (mm) | 900W×690D×2100H |
| N.W.(kg) | 82 |
>>
