Product Details
Product Description
Product Description
Brand:SAT

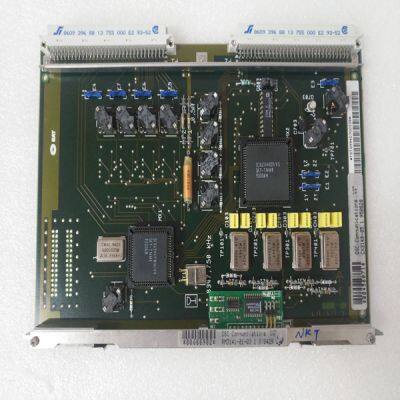

Type:RM3141-01-02
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
RS232 serial communication cable (DB9 to Mod Jack) -- 6 feet. CF-DA0111N-XX-X Feedback Cable "value series" - Euro connector at the motor end to IEEE1394 connector at the drive end for Smart Feedback Device support. CP-102ACN-XX-X Power Cable "value series" - Molex connector at the motor end to S200 crimp pin pluggable connector at the drive end. CP-102AAAN-XX-X Power Cable "value series" - Euro connector at the motor end to S200 crimp pin pluggable connector at the drive end. CC-D01CO2N-XX-X Composite Cable "value series" - Single Molex connector at the motor end to IEEE1394 connector and S200 crimp pin pluggable connector at the drive end for Smart Feedback Device and power support in the single cable. CC-D01AO2N-XX-X Composite Cable "value series" - Euro style connector for power and feedback at the motor end to IEEE1394 connector and S200 crimp pin pluggable connector at the drive end for Smart Feedback Device and power support in a single cable. Only available on AKM3 and AKM4 series motors.DIAGNOSTICS AND TROUBLESHOOTING The S200 drive incorporates: Output motor short circuit protection line-to-line, line-to-neutral and line-to-PE. Internal monitoring of the power stage heat sink temperature for drive overtemperature. Bus over-voltage and under-voltage detection. Control under voltage detection. Excessive current I*t fault/foldback. Depending on drive setup, when excessive I*t is detected either the peak output current limit is dropped to 67% of maximum or the drive faults. Excessive motor current I 2 t protection. Invalid smart feedback device (SFD) shaft feedback signal. Motor over temperature on SFD equipped motors.
Option card detected faults e.g. Aux Feedback interface faults. 11.1 DRIVE FAULT CODES The Drive Status LED is located on the front panel. The drive status and fault codes are communicated by the state of the LED. Status LED Drive Status ON Drive is enabled, not faulted. Output stage is enabled and controlling power to the motor OFF Drive control power input is not powered or has insufficient voltage applied Fast Blinking Drive is not enabled, not faulted. Output stage is not enabled – no power to the motor Slow Blinking (with a pause) Drive is blinking a fault code The number of blinks corresponds to the fault code as follows: Blink Count Fault Code 1 Not Fault 2 Motor Over Temp 3 Drive Over/Under Temp 4 Drive I*t Too High 5 Motor I2 T Too High 6 Optional Battery low 7 Bus Over Voltage 8 Bus Under Voltage 9 Motor l-l or l-n Short 10 Output Over Current 11 Hall Fault 12 SFD Configuration Error 13 SFD Short 14 SFD Motor Data Error 15 SFD Sensor Failure 16 SFD UART Error 17 SFD Communication Error 18 Option Card Watch Dog Timeout 19 Position Error Too Large 20 OC Fault
>>
