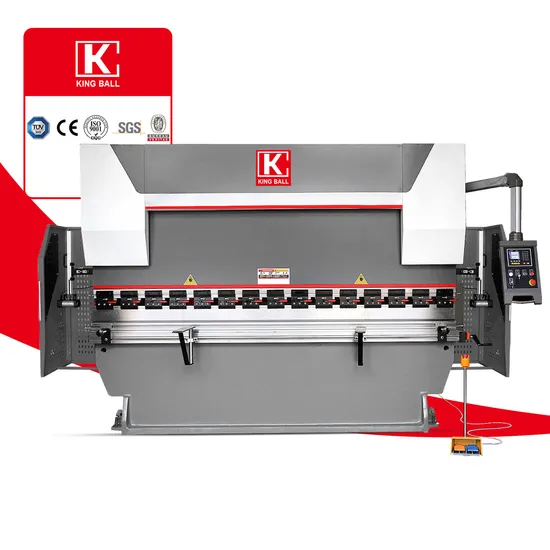

Torsion Bar Synchronous Nc Press Brake Machine Kcn-50050

Product Description

Products Description

Torsion bar Synchronous CNC Press Brake			KCN-10025	KCN-10032	KCN-10040
Capacity		kN	1000	1000	1000
Max. Bending Length		mm	2500	3200	4000
Between Columns		mm	2100	2600	3100
Max. Shut Height		mm	410	410	410
Slide Stroke		mm	150	150	150
Throat Depth		mm	320	320	320
Down Speed		mm/min	100	100	100
Pressing Speed		mm/min	10	10	10
Return Speed		mm/min	90	90	90
Main Motor Power		kW	7.5	7.5	7.5
X axis stroke		mm	500	500	500
X axis speed		mm/s	300	300	300
R axis stroke		mm	3000	3700	4500
R axis speed		mm/s	1750	1750	1750
Outline Size	L	mm	2400	2400	2450
	W	mm	5800	6800	7500
	H	mm	2450	2450	2450
Weight		kg	7000	7500	8000

Details Images
KCN Series Torsion bar Synchronous CNC Press BrakeMain functions and featuresOverall welded and processed structure.
Mechanical stop and steel torsion bar to maintain synchronization and high precision.
Movement of backgauge and ram stroke is servo controlled by CT8 Controller
The function of angle programming of CT8 Controller will bring high bending efficiency.
X axes is controlled by servo motor, with strong synchronous belt,with high control accuracy,fast positioning and low noise.
With high-precision cnc moulds/dies and quick clamps,it will be more accurate and durable when bending plates,high efficiency when removing and changing upper punch tools.
With imported hydraulic system,stable and high precision when persistent working.
Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.Main motor Siemens main motor German brand. Sunny pump USA brand. Rexroth valve German brand.Laser safety protectionDSP Laser safety device protects the press brake operator from the danger of crushing between the moving and fixed part of the
machine.
DSP Laser safety device is mounted on the moving part of the machine, and the protection zone moves with the part. When an
obstacle is detected, such as an operators fingers, detection is immediate and the machine can be stopped.
Our ServicePre-sales services:1. inquiry and consulting support 2. sample testing support 3. visit our factoryAfter-sales services:1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery overseas Contact WaysMiss.Daisy ShanCustomer ManagerE-mail:daisy@jinqiu.cc
FAQ
1.Can you supply the relevant documentation?Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days.For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship.Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way.By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of
amount, weight and way. Please contact us for further information.

---
