Zhuxin Automatic 3 Layer ABA Biodegradable HDPE LDPE PP PE Plastic Blown Film Extrusion Three Layer Film Blowing Extruder Machine Production with Printer

US$18,000.00-32,500.00 1 Set (MOQ)

Basic Info.

Model NO.

3-ABA

Type

PE Film Blowing Machine

Raw Material

Maximum Folding Width of Film

1500mm

Screw Diameter

50mm

Automation

Automatic

Computerized

Machine Weight

3500kg

Certification

CE, ISO9001:2008

Winder

Single or Double

Die Head

Rotary or Fix

Parts Brand

China or Imported Brand

Screw

50+50mm

L:D

30:1

Transport Package

Seaworthy Packing

Specification

7000 x 3300 x 6500 mm

Trademark

ZHUXIN

Origin

China

HS Code

84779000

Production Capacity

600sets/Year

Packaging & Delivery

Package Size

700.00cm * 330.00cm * 650.00cm

Package Gross Weight

3500.000kg

Product Description

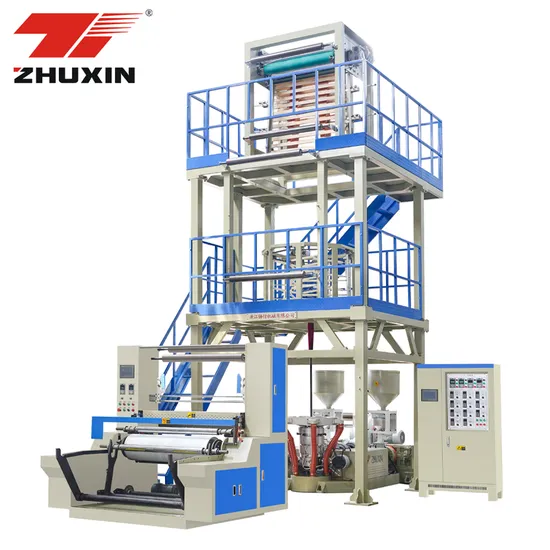

Zhuxin ABA Three Layer Film Blowing Machine Product Information The machine body is channel steel frame traction frequency friction, with single rolling friction, lift up and down which is suitable for blowing high-low pressure polyethylene industrial fiml and agricultural film. Product Images
Main Technical Parameters

	Model	ABA-1100	Origin
FEATURE	Suitable Material	HDPE LDPE
	Film Width	500-1000mm
	Film Thickness	0.03-0.20mm
	Film Layer No.	3-ABA
	Max. Extrusion Output	125kg/h (HD)
	Voltage	380V, 50HZ, 3PHASE
	Average Power Consume	55kw
	Machine Dimension (LxWxH)	7000 x 3300 x 6500 mm
	Machine Weight	3500kg

EXTRUDER	Screw Diameter	ф50+50High speed screw
	Screw l/d length	30:1
	Screw material	38 Crmoala Alloy
	Cylinder material	38 Crmoala
	Cylinder cooling	370w x 6
	Cylinder Temperature control	3 Zone	TAIWAN FOTEK
	Drum Loader	Meantime add 50kg x 2
	Main motor	18.5kw x 2 Direct connected motor	WEINUO
	Inverter	18.5kw	Hayner
	Standard Screen Changer	2 SET
	Gear Box	173 S x 2	SHUGUANG S Type

DIE HEAD	Die size(HD)	Ф80
	Die Outer Diameter(HD)	Ф340
	Die Height	550mm
	Die Type	FIXED TYPE
	Temperature Control	3 Zone
	Air ring	2-lip	DALIAN
	Air blower	11kw x 1 With Inverter control
	Width of Air ring	800mm
	Height of Air ring	250mm
	Air Pipe	Ф70 x 6pcs

TAKE UP UNIT	Embossing roller	Ф140 x 1100mm
	Embossed rubber roller	Ф140 x 1100mm
	Take-up pinch roller	Ф165 x 1100mm (Rubber roller) Ф165 x1100mm (Smooth roller)
	Roller width	1100mm
	Effective width	1000mm
	Take-up speed	10-100m/min
	Take-up motor	1.5kw With Inverter control
	Collapsing Plates	Wood
	Bubble Holder	Plastic Roll Ball (Electrical Control)
	Gusset	Wood x 2

WINDING	Winding type	Friction Type Automatic Single Winding (With Secondary Take-up)
	Winding motor	1.5kw With Inverter control
	Winding speed	10-100m/min
	Sectioning knife	Pneumatic Dissector x 2 SET
	Edge Cutting knife	2 SET
	Banana Roller	1 SET
	Winding Roller	Air Shaft x 2 Ф76 x 900mm
	Winding Steel Roller	Ф300 x 900mm

ELECTRICAL	Contactor, Breaker, Relay		Schneider
	Temperature Control		TAIWAN FOTEK


ADDITIONAL PART	Mick Weight System	2 SET	CHINA
	Auto loader	2 SET	CHINA
	Automatic width gauge	1 SET	CHINA

FAQ
1.Q:Are you a factory or trading company ?
A:We are a factory

2.Q:Where is your factory located ?How can I visit there ?
A:Our factory is located in Ruian City , Zhejiang Province ,China
About 40 minutes by plane from shanghai (5 hours by train )

3.Q:How is your after-sales service ?
A:We have been in this printing machine line of business for more than many years ,
We will send our professional engineer to install and test machine .So our after-sales service is always reliable.

4.Q:If your machines can print ?
A :Our machines is multifunction , do roll to roll printing , such as paper, plastic film , woven bag , nonwoven .
Surely , you can offer your products, Let us confirm it .We will suggest you the best project.

5 .Q:How does your factory do regarding the quality control ?
A:We are the technical factory, we put more time on the quality control.
Question: Are you Manufacture or Trading Company?
Answer:We are printing machines manufacturer nearly 10years, we had established our own trading company to expand our foreign market business, and provided our customer better service.
Question: Where is your factory located? How can I visit there?
Answer: Our factory is located in Wenzhou City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.

6.Q: How does your factory do regarding quality control?
Answer: Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.

7.Q:Do you company provided foreign country machine installation services?
Answer: We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.

8.Q: How your company provided after sales service?
Answer: All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
