Basic Info.
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Production Capacity
1000sets/Year
Product Description

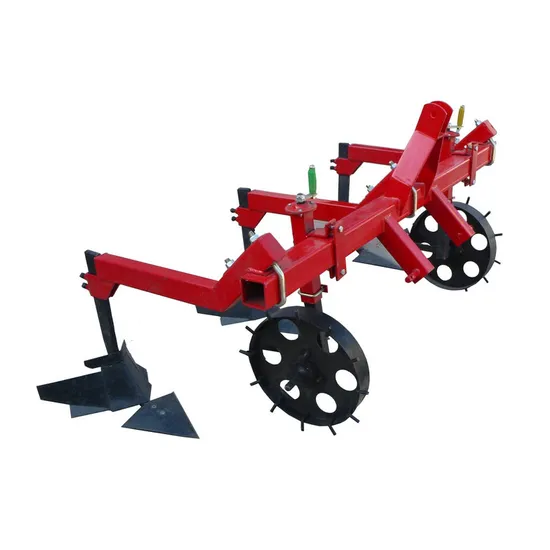

3Z cultivator is suitable for cultivating corn, cotton, soybean, sugar beet, etc. It can perform cultivating, ditching, riding, deep loosing, etc. The rotary cultivator can break the harden soil, loose soil, and keep the underground water of soil, and clean the stubble of crop. This cultivating machine is rational structure. It is safe, durable, and high efficiency.
Advantages: It is a tractor mounted cultivator. The working depth of this farm cultivator could be adjustable. The plow tip could be selectable for your need.
Model | unit | 3Z-2 | 3Z-3 | 3Z-4 | 3Z-5 |
| Working width | mm | 1100 | 1900 | 2900 | 3700 |
| Working depth | mm | 100-200 |
| No. of tines | | 2 | 3 | 4 | 5 |
| Ridging of rows | | 1 | 2 | 3 | 4 |
| Total weight | kg | 90 | 120 | 150 | 190 |
| Matched power | hp | 18 | 20-30 | 40-50 | 70-80 |
| Linkage | | Three-point suspension I type | Three-point suspension II type |
>>
